Description

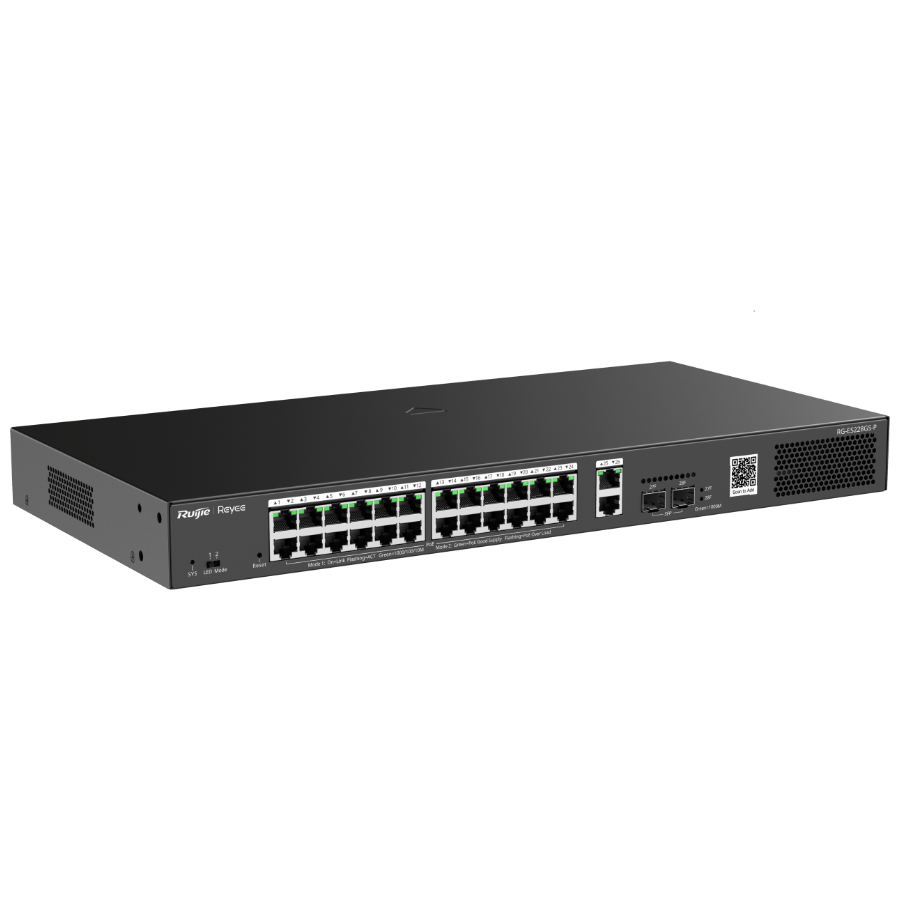

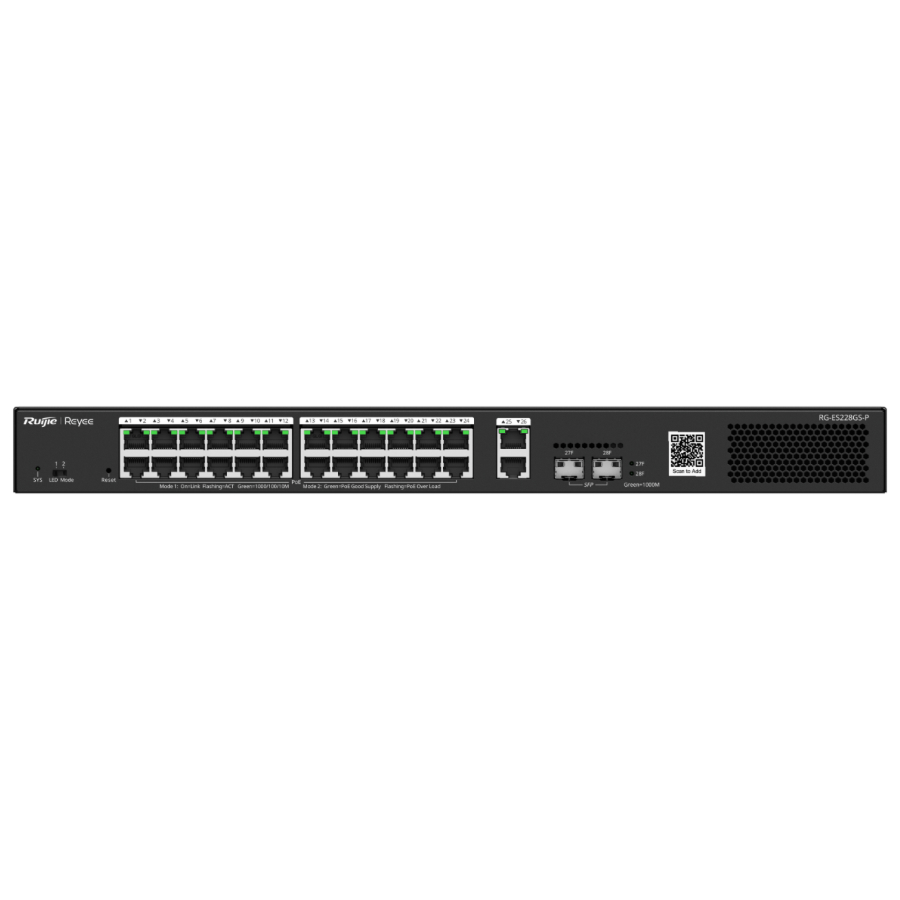

Ruijie 28-port Gigabit Smart Cloud Mananged PoE Switch
Product: RG-ES228GS-P
Highlight Features
- 28-Port Gigabit Managed Switch with 24 PoE+ Ports, 2 RJ45 Ports, 2 SFP Ports
- Cost-Effective Smart Cloud Managed Switches
- IP Camera Recognition, Unique Value for CCTV Network
- Automatic Loop Prevention Ensures Service Continuity
- Lifetime management on Ruijie Cloud at anytime anywhere
Cost-Effective Smart Cloud Managed Switches
ES200 adopts a light-weighted Cloud management design, providing faster response to support richer features.
Port Specifications
Total number of RJ45 ports: 26
Total number of optical ports: 2
Number of 1GE SFP ports: 2
Number of 10/100/1000BASE-T ports: 26
Power Supply and Consumption
Number of PoE Out ports: 24
Number of PoE/PoE+ Out ports: 24
PoE budget: 370 W
PoE power pins: 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate: 41.6 Mbps
Switching capacity: 56 Gbps(bit/s)
Dimensions (W x D x H): 440 mm x 214.9 mm x 44 mm
POE: 370W, IEEE 802.3at / IEEE 802.3af
Forwarding rate: 38.69 Mpps
Maximum VLAN: 16
Weight (With package): 4 kg
Warranty: 3 Years
