Description

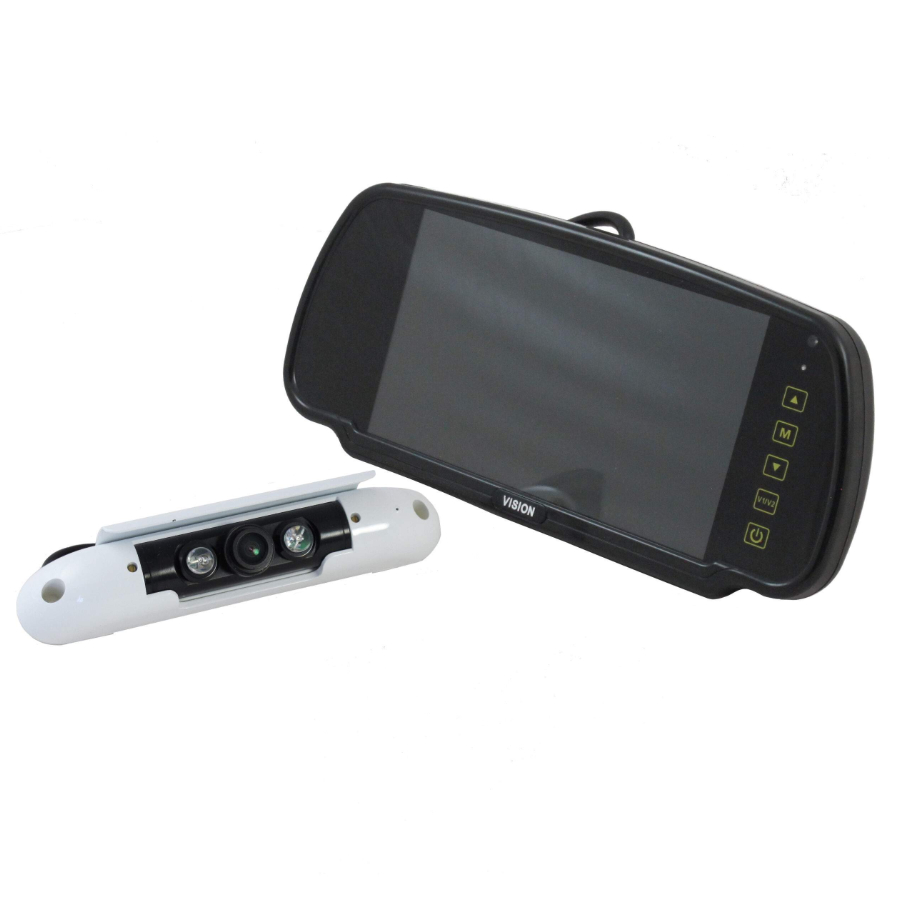

Ranger 420 – 7″ Clip-Over Mirror Monitor & Slim-Line Camera System
Model – 06-3630
Rear-view Clip-over mirror with built-in 7″ colour touch screen LCD TFT Monitor with Slim-line camera.
MONITOR FEATURES:
• Display Size: 7.0” (16:9 ratio)
• PAL/ NTSC Auto Switch
• Resolution: 1024 x 600
• Brightness: 450 cd/m2
• Contrast: 300:1
• 2 Video inputs
• 1 Audio input
• Regulates power to cameras
• Simple connection and wiring
• Manual or Auto operation
• Built in Speaker (1 watt)
• Clip-over Mirror Mounting
• 12-24 Volt operation
CAMERA FEATURES:
• 120 degree viewing angle
• Colour 1/3″ CCD Chip Set
• Built-in day & night vision
• Built in microphone
• Easy adjustment of vertical viewing angle after installation
• Slimline connectors (10mm diameter drill hole) for easy cable routing
• Waterproof (IP-67)
• Dimensions (h)30mm x (w)159mm x (d)41mm
• 12v Operation (power input from monitor wiring harness)
MONITOR DIMENSIONS
246(W) x 116(H) x 30(D excl. clips) mm
SYSTEM INCLUDES:
• RVM-700A Clip-over Mirror Monitor
• Slim-line Camera
• 15m AV Lead
• Monitor harness
• Universal AV adaptors kit
• Remote Control
