Description

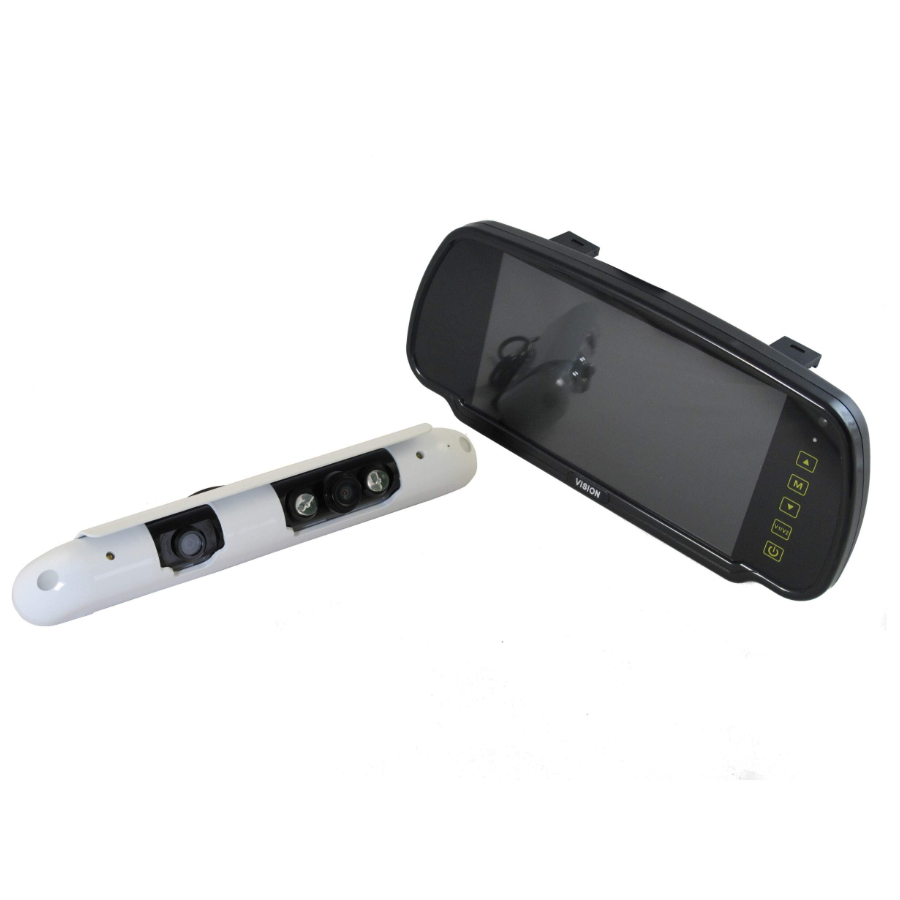

Ranger 440 – 7″ Clip-Over Mirror Monitor & Dual Camera System
Model – 06-3650
Rear-view Clip-over mirror with built-in 7″ colour touch screen LCD TFT Monitor with Dual Slimline Camera.
MONITOR FEATURES:
• Display Size: 7.0” (16:9 ratio)
• PAL/ NTSC Auto Switch
• Resolution: 1024 x 600
• Brightness: 450 cd/m2
• Contrast: 300:1
• 2 Video inputs
• 1 Audio input
• Regulates power to cameras
• Simple connection and wiring
• Manual or Auto operation
• Built in Speaker (1 watt)
• Clip-over Mirror Mounting
• 12-24 Volt operation
CAMERA FEATURES:
• 120 and 45 degree viewing angles
• Colour 1/3″ CCD Chip Set
• Built-in day & night vision
• Built in microphone
• Cameras independently and easily adjustable after installation to optimise
vertical viewing angles
• Slimline connectors (10mm diameter drill hole) for easy cable routing
• Waterproof (IP-67)
• Dimensions (h)30mm x (w)227mm x (d)30mm
• 12v Operation (power input from monitor wiring harness)
MONITOR DIMENSIONS
246(W) x 116(H) x 30(D excl. clips) mm
SYSTEM INCLUDES:
• RVM-700A Clip-over Mirror Monitor
• 120 and 45 degree cameras
• 15m Slimline AV Lead
• Monitor harness
• Remote Control
