Description

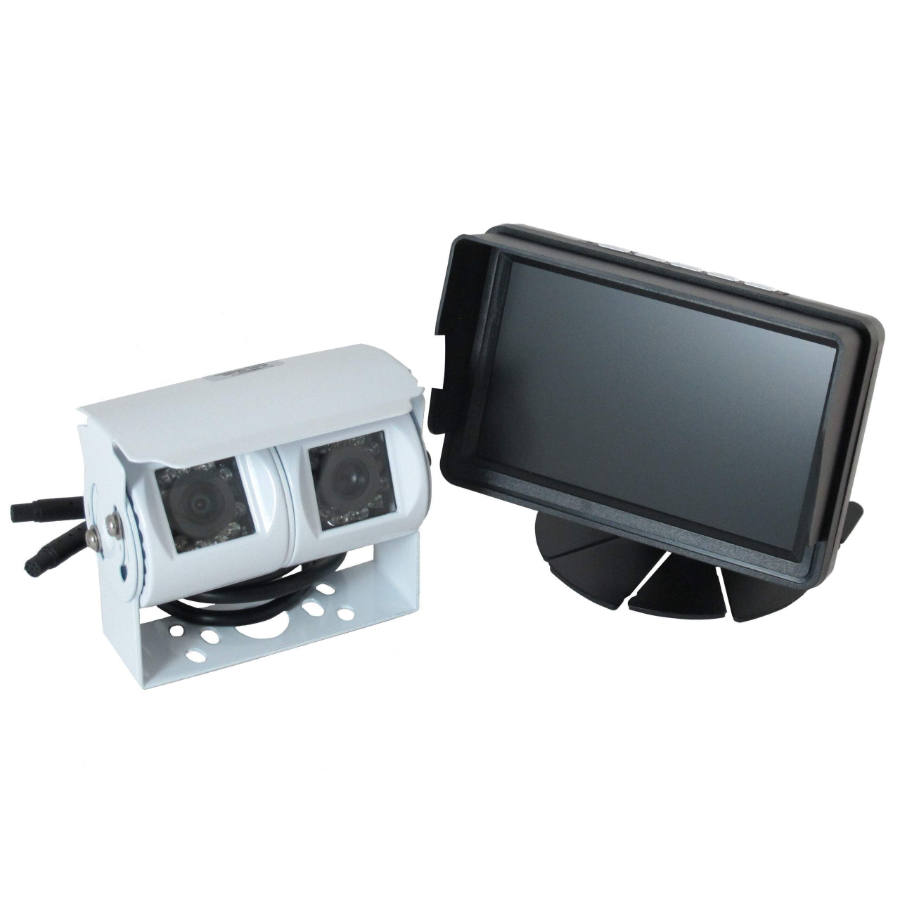

Ranger 230 – 5″ Monitor & Dual Camera System
Model – 06-3440
This professional Rear View System features a high resolution TFT LCD panel, efficient slim housing design keeps the monitor as small as possible.
Features built in speaker, built in sun visor; pedestal mount and remote control.This twin camera is designed for long vehicles and combines a 120 degree camera for reversing and a 45 degree angle camera to provide a longer distance view when driving normally.Both cameras are 1/3″ Sony CCD cameras and feature LED’s for additional night time illumination.
Camera is waterproof and features slimline connectors for easy cable routing.
MONITOR FEATURES:
• 5″ wide screen colour monitor
• Slim and compact housing
• Selectable reversing grid
• Picture adjustable in horizontal, vertical and mirror orientations
• Brightness 350 cd/m2
• Resolution 800 x 480
• Auto switching of cameras
• Built-in speaker
• 2 AV inputs
• Soft touch casing
• Snap on sun visor
• Dimensions: 130mm(W) x 90mm(H) x 50mm(D)
• Remote control
• 12-24 volt operation
CAMERA FEATURES:
• 120 and 45 degree angle cameras
• Sony Colour 1/3″ CCD Chip Set
• Built-in IR LEDS for night viewing
• Cameras independently adjustable to optimise view
• Waterproof (IP-67)
• Dimensions (w)105mm x (h)85mm x (d)70mm (inc. bracket & visor)
• Slimline connectors
• 12 volt Operation
SYSTEM INCLUDES:
• 5″ wide screen colour monitor
• DN-32 120 and 45 degree cameras
• 15m Slimline AV Lead
• Monitor harness
• Remote Control
