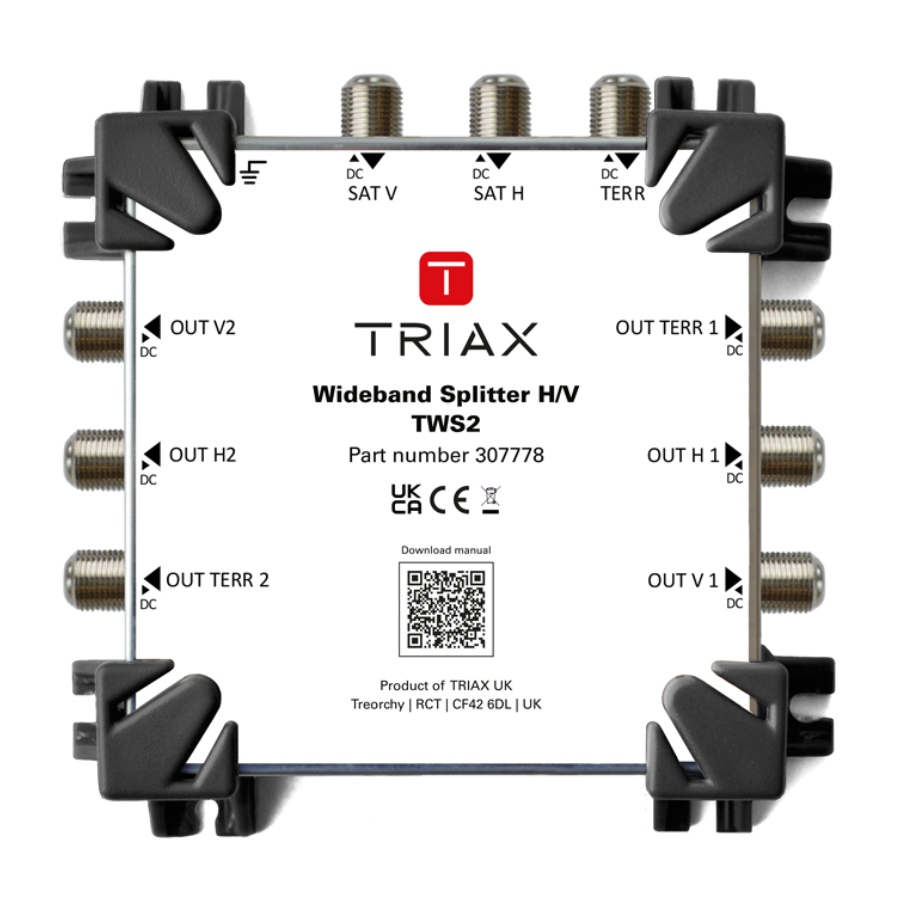

Triax TWS2 Wideband Splitter, H/V/T 2 x Sat 1 x Terr input
Product :- 307778
TWS2 Wideband Splitter H/V
The TWS2 splitter is designed to be used with Wideband systems with Satellite IF frequencies from 290 MHz to 2340 MHz, and Terrestrial frequencies between 5 MHz and 862 MHz.
- SAT Insertion Loss: 4.5dB
- TER Insertion Loss:: 3.5…4.0dB
- SAT Frequency Range: 290…2340 MHz
- TER Frequency Range: 5…862 MHz
- Number of inputs: 3
- Number of outputs: 6
- Dimensions – H: 130mm
- Dimensions – D: 115mm
- Dimensions – W: 50mm
