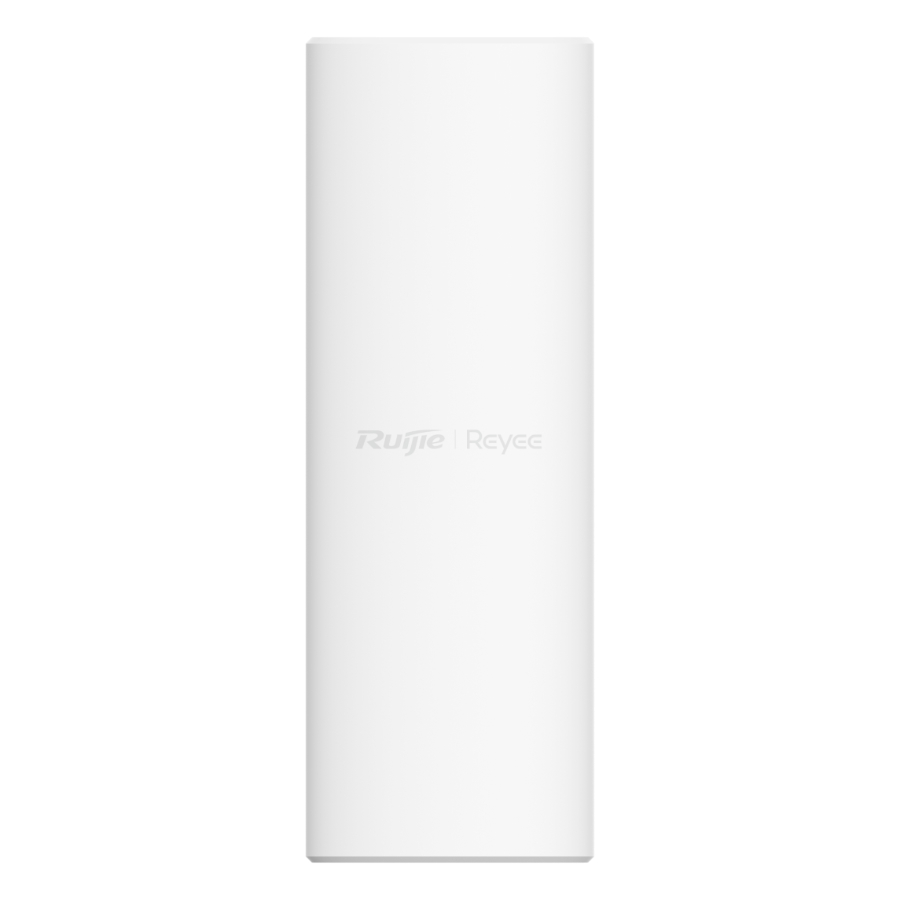

Reyee RG-RAP62-OD, Reyee Wi-Fi 6 AX3000 Dual-Band Outdoor Access Point
Product: RG-RAP62-OD
Move Wi-Fi Outdoors
- AX3000 Versatile Outdoor/Indoor Mesh AP for Villas and Retail Businesses

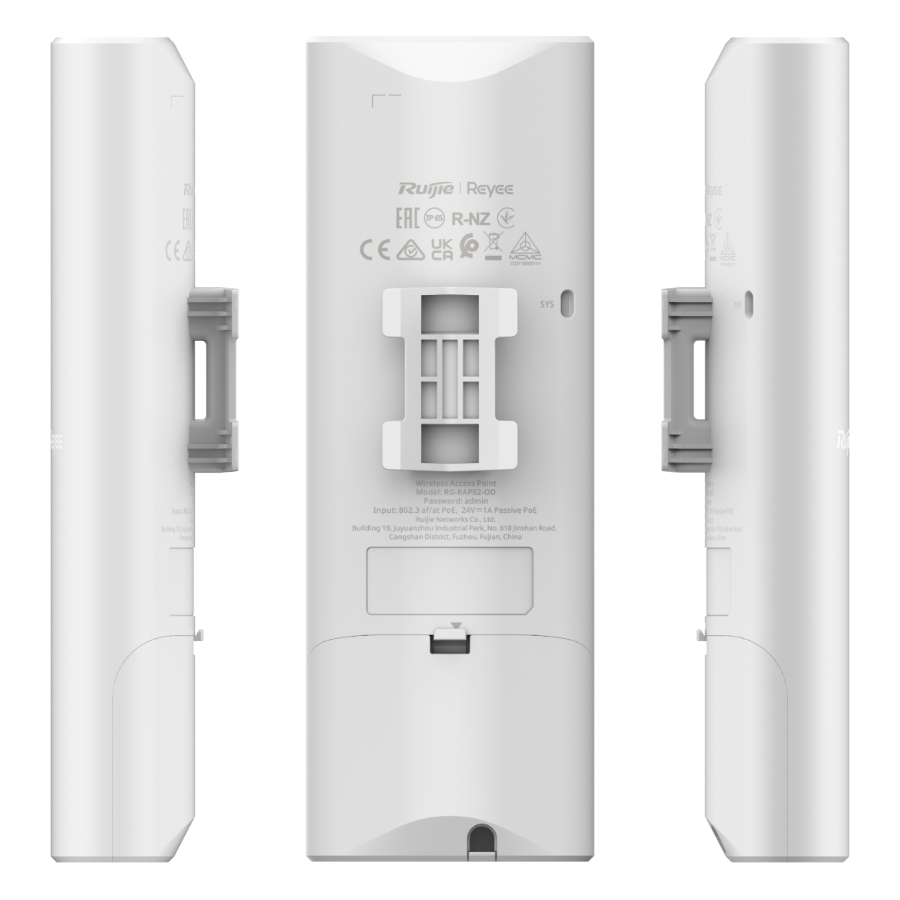

- Wall or Pole Mounting to Fit in Any Location
- IP65 Weatherproof Rating, Delivering Consistent Protection and Signal Stability
- Build-in Antennas for Coverage Where Needed
- Tailored for Retail Businesses with Reyee Mesh, Standalone Portal, and AI Roaming Features
Data Sheet
Install Guide
Key Specification
| 5 GHz Wi-Fi Protocols: | Wi-Fi 4: IEEE 802.11a/b/g/n
Wi-Fi 5: IEEE 802.11ac Wave 2 |
2.4 GHz Wi-Fi Protocols: | Wi-Fi 4: IEEE 802.11b/g/n Wi-Fi 6: IEEE 802.11ax |
|
| 5 GHz Spatial Streams: | 2 spatial streams, 2×2 MIMO | 2.4 GHz Spatial Streams: | 2 spatial streams, 2×2 MIMO | |
| Wireless Data Rates: | 2974Mbps | Dimensions
(excluding mounting kits):
|
200 mm x 70 mm x 35 mm (7.87 in. x 2.76 in. x 1.38 in.) |
|
| Weight
(excluding mounting kits): |
≤ 0.4 kg (0.88 lbs.) | Number of
10/100/1000BASE-T Ports:
|
1 (supports 802.3at PoE) | |
| 802.3af: | Yes | 802.3at:
|
Yes | |
| 24 V passive PoE: | Yes | 48 V passive PoE: | Yes |
