HDANYWHERE Multi Zone Matrix Amp (6×4) 55
Product: MZMA6455
HDA Multi Zone Matrix Amp (6×4) 55 – High-Performance 8-Channel Audio Matrix
Description
A powerful and space-efficient 8-channel amplifier designed for multi-room audio distribution. With six inputs, four amplified outputs and full control via the uControl app, the MZMA (6×4) 55 delivers premium hi-fi sound for residential, commercial, and entertainment spaces.

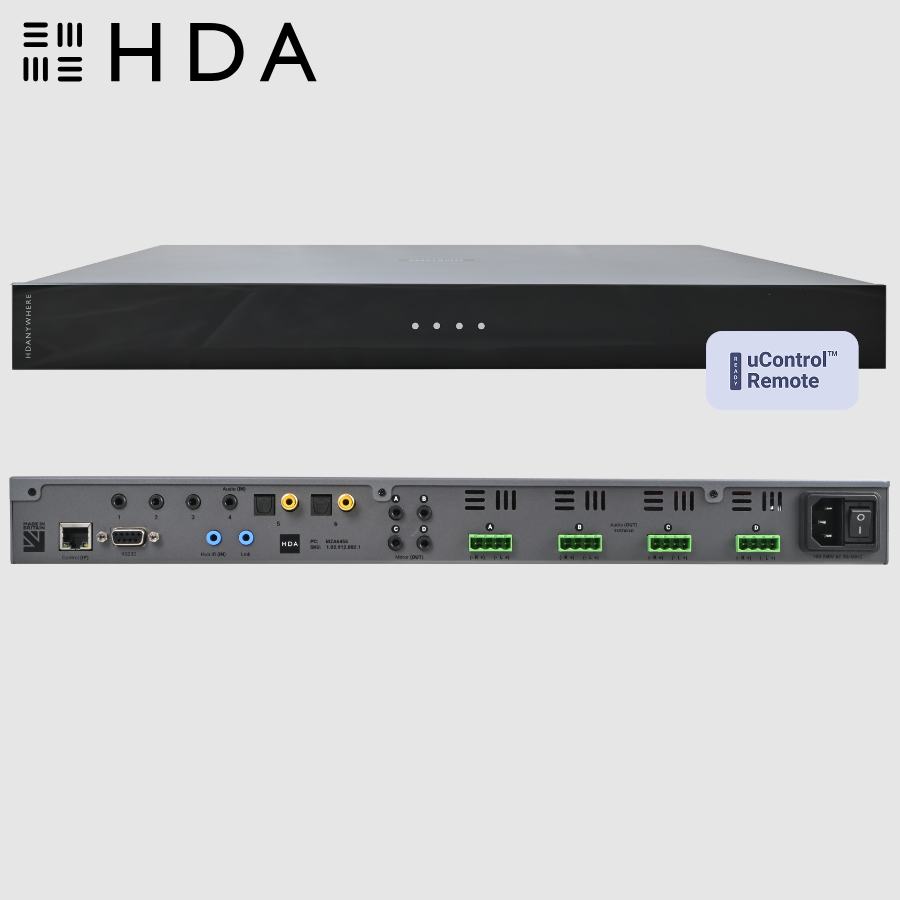

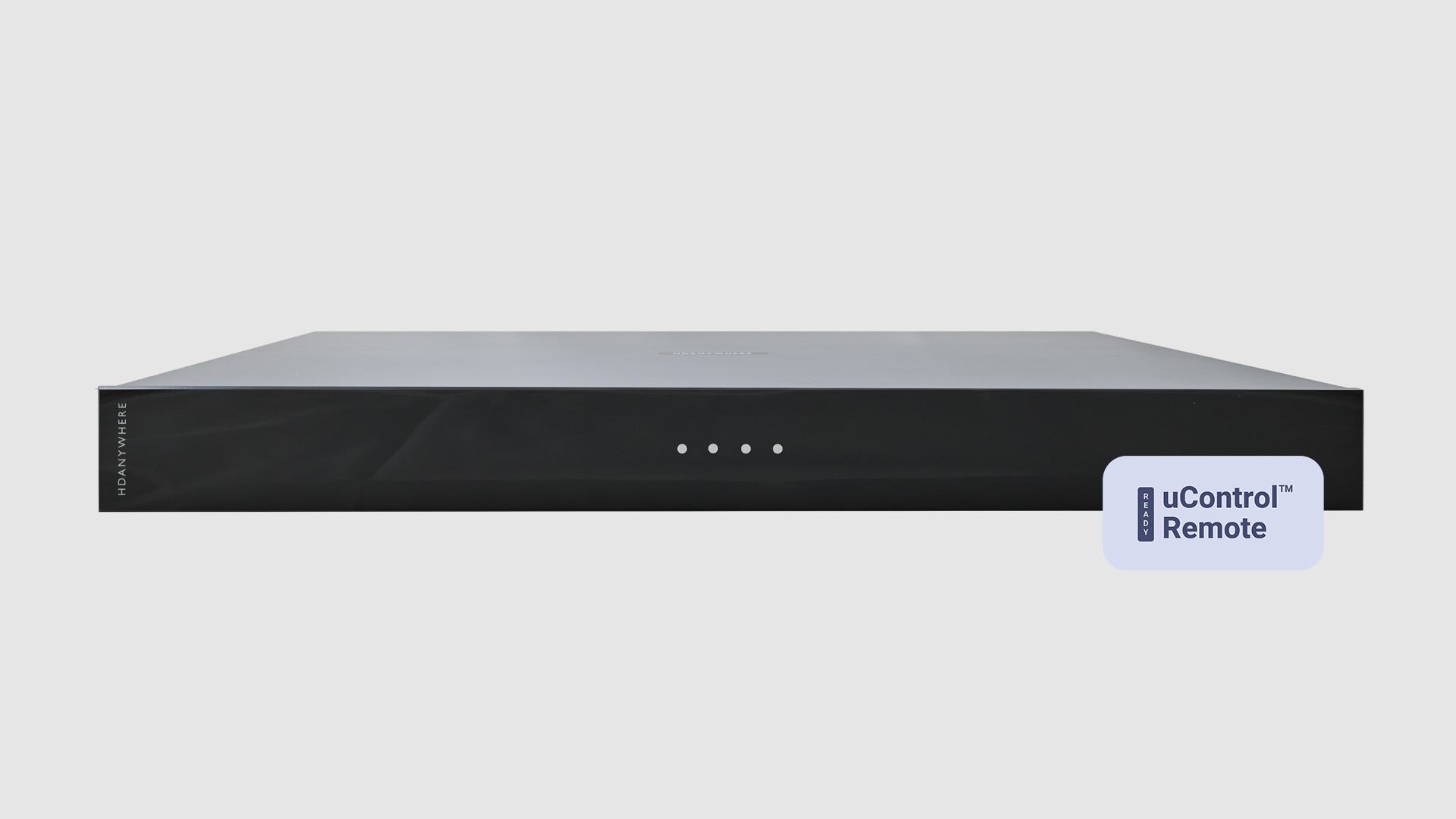

The Multi Zone Matrix Amp (6×4) 55 (MZMA) is a high-performance 1U amplifier delivering 55W per channel and 42W all channels driven, ensuring room-to-room crystal-clear audio across up to four independent zones. Built in the UK and designed for seamless integration with MHUB PRO 2.0, the MZMA enhances both music and TV audio distribution, reducing clutter while maximising performance.
Designed for residential, commercial and hospitality environments, this matrix amplifier includes a fully analogue 3-band EQ, adjustable input gain and power-saving modes for efficient operation. Control is made effortless via the uControl app and full compatibility with major control systems ensures seamless integration. Whether it’s a luxury home, showroom, pub, or retail space, the MZMA delivers outstanding flexibility and audio fidelity.
User Manual
Datasheet
Features:

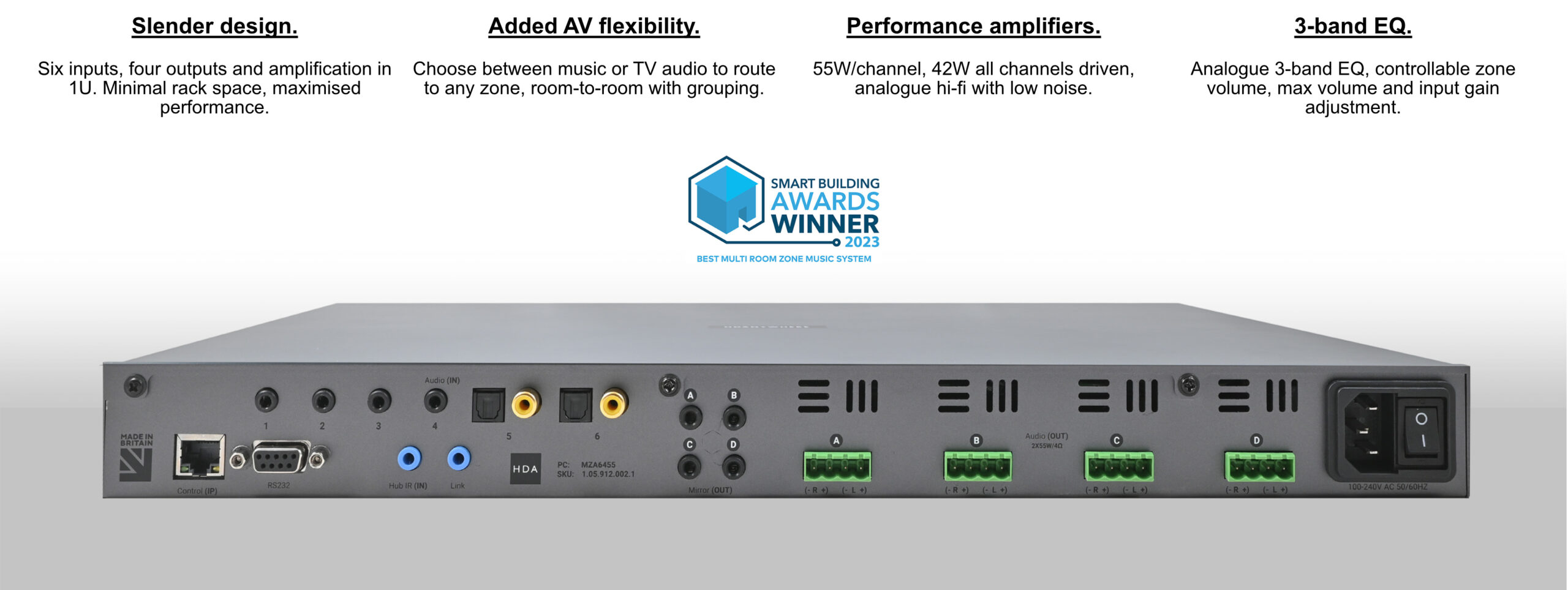

- Compact 1U Design – Six inputs, four outputs and amplification in a minimal space-saving form factor.

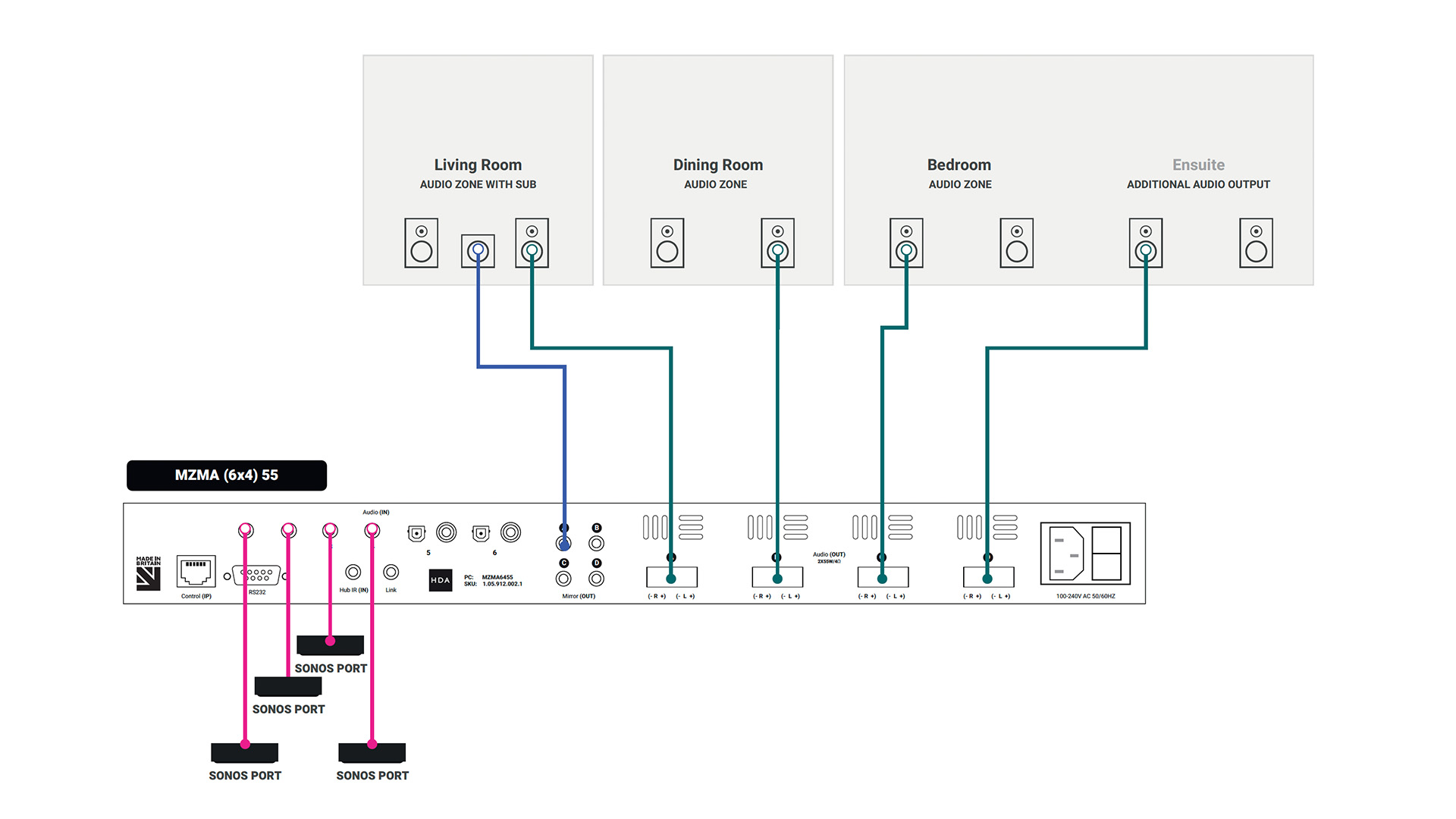

- AV Flexibility – Easily switch between TV audio or music in any zone with seamless room-to-room audio grouping.
- Powerful Amplification – 55W per channel (42W all channels driven) for crystal-clear, high-fidelity sound.
- 3-Band EQ Control – Fully adjustable treble, mid and bass settings for optimised room tuning.

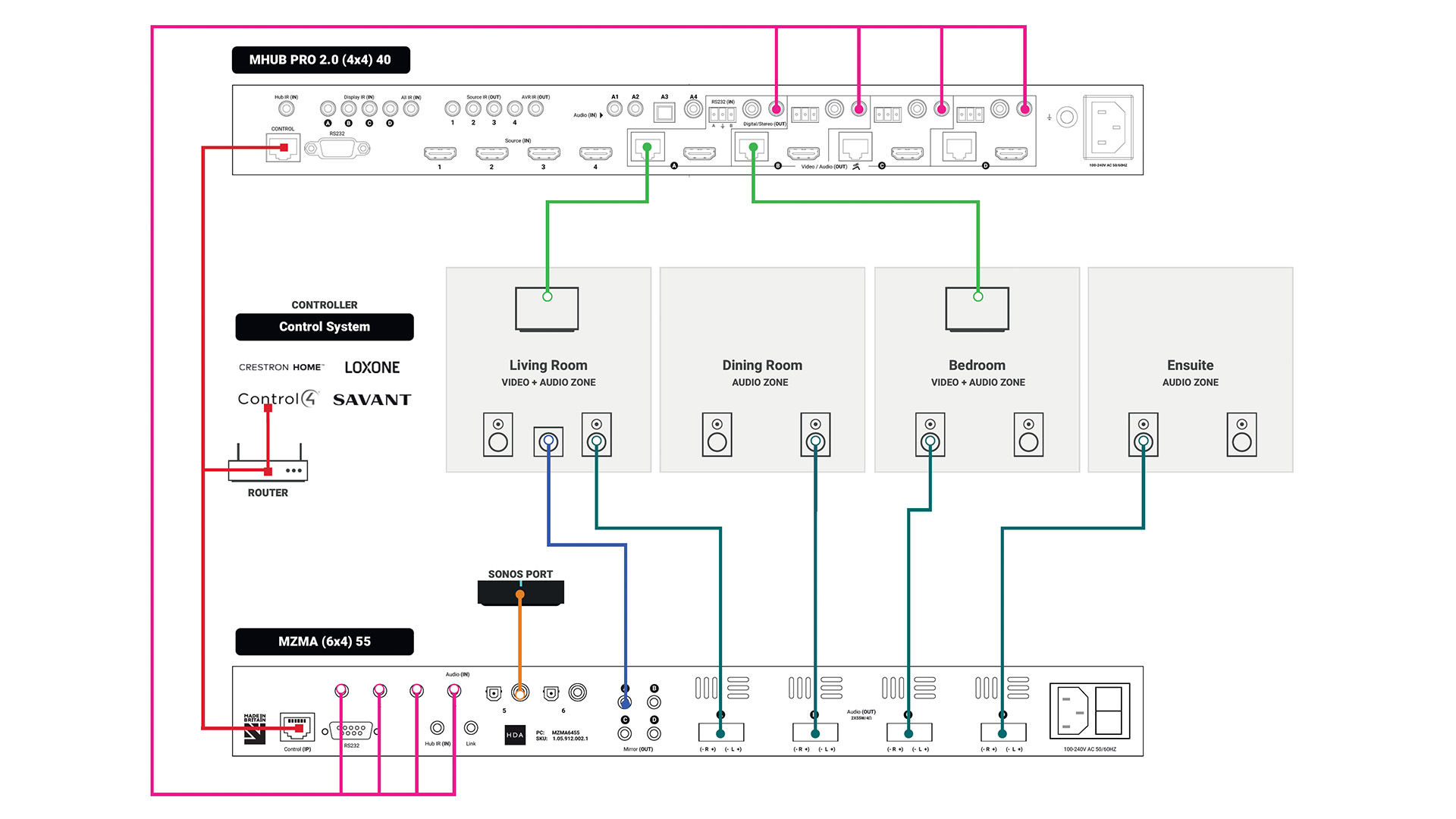

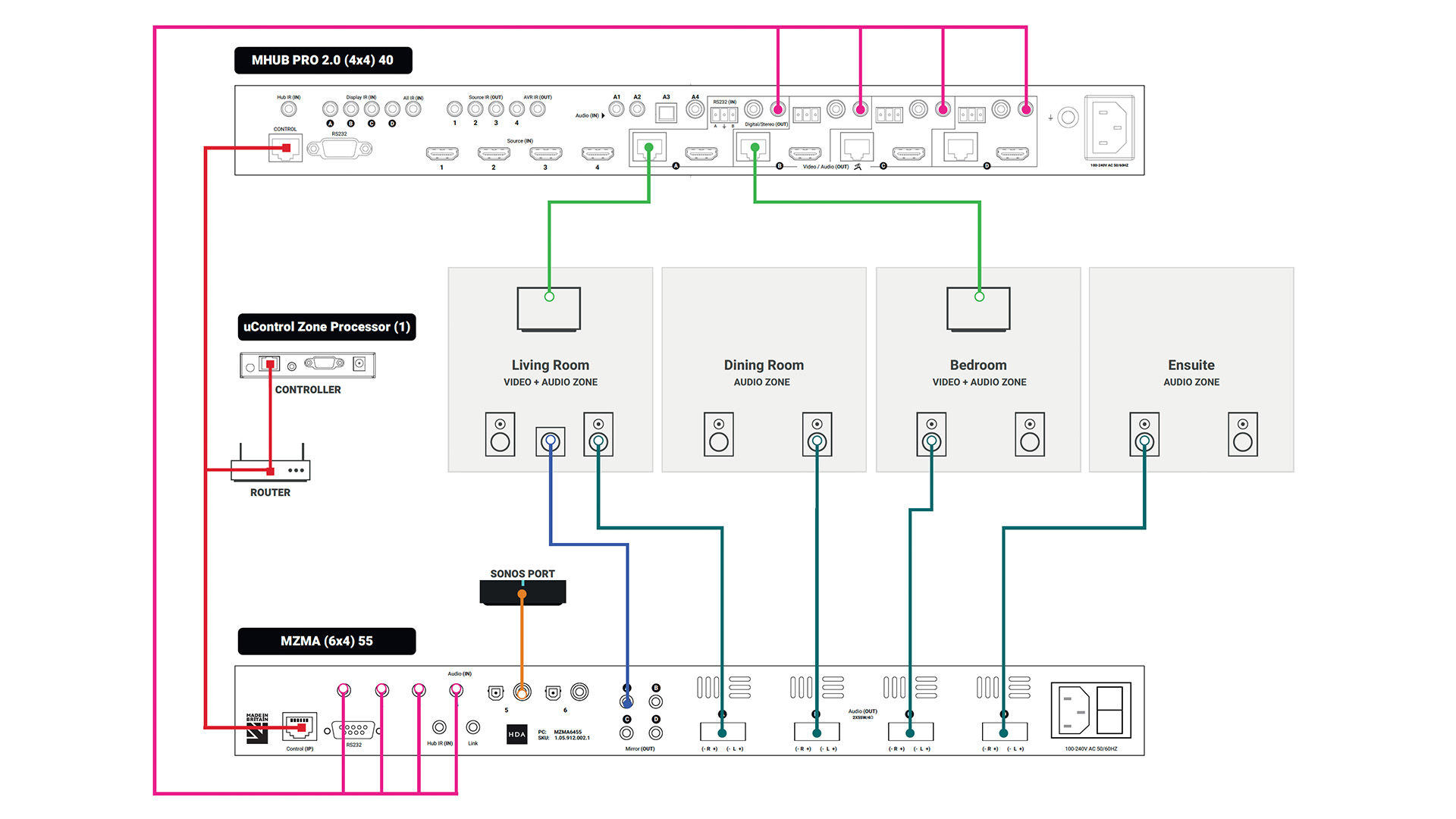

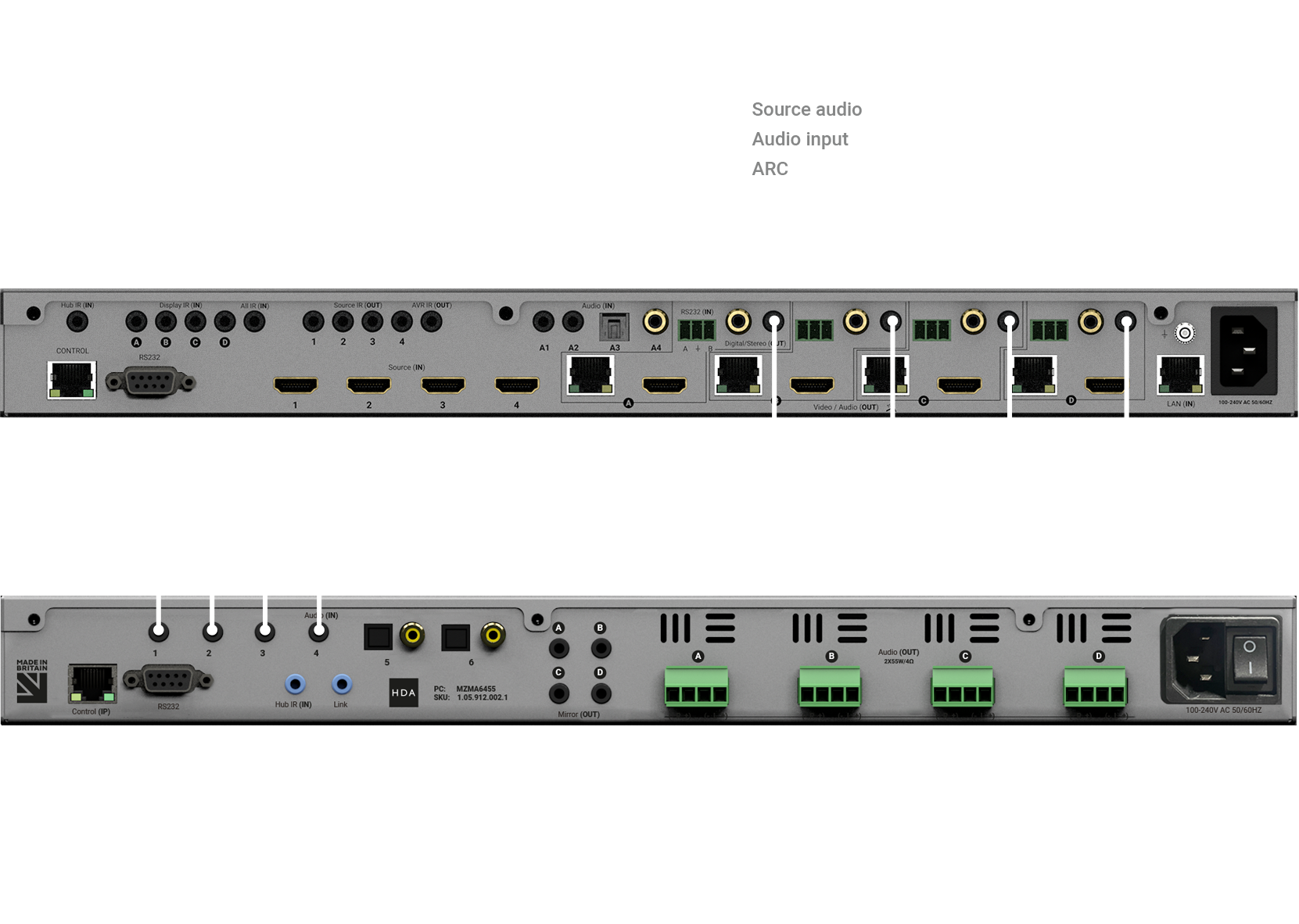

- Standalone or Stackable – Works alone or integrates with MHUB PRO 2.0 for a video & audio matrix solution.
- Integrated uControl OS – No need for an external control system, fully managed via the uControl app and remote.
- Full Control System Compatibility – Supports all major control systems with zone volume, amp power state and input switching.
- Energy Efficient – Automatic power-saving amplifier shut-down mode for reduced energy consumption.
- Warranty – 2-Year Guarantee + 3-Year Extension with HDA Cloud Registration (within 30 days of installation)
Specifications

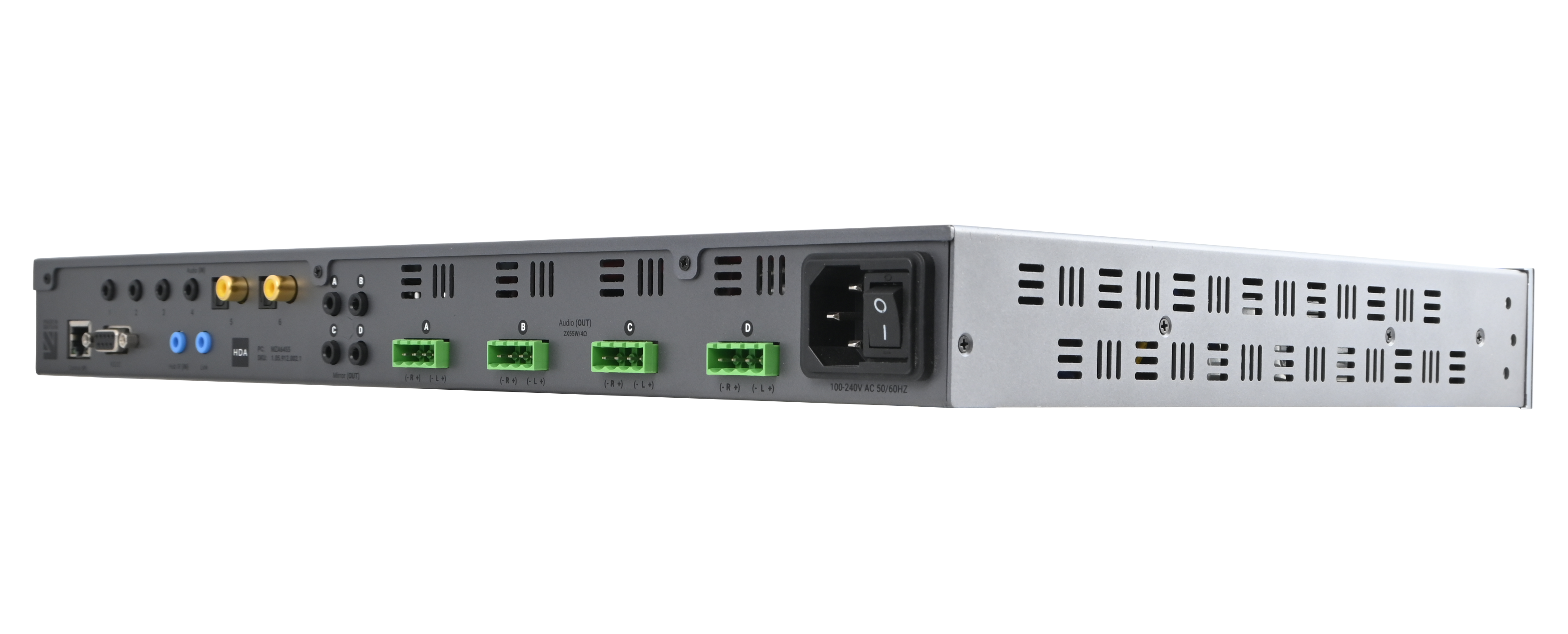

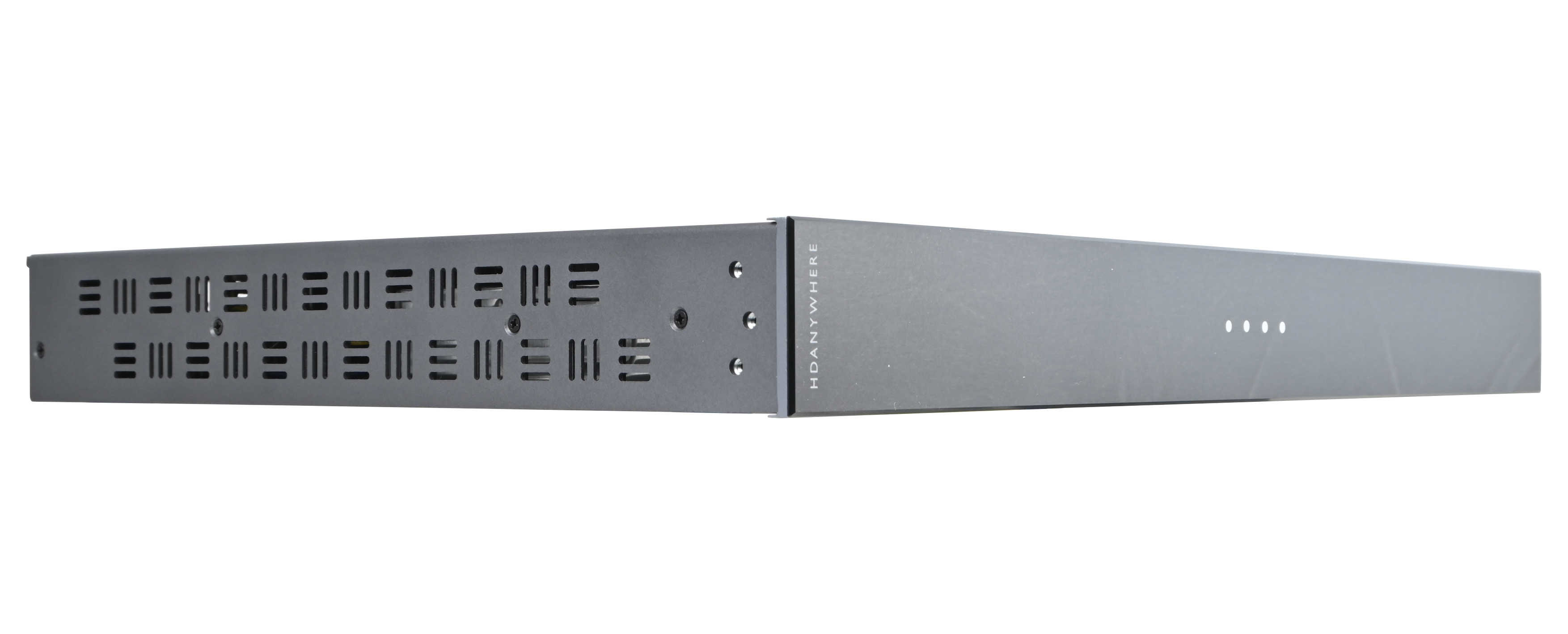

Form Factor: 19”/1U rack-mountable

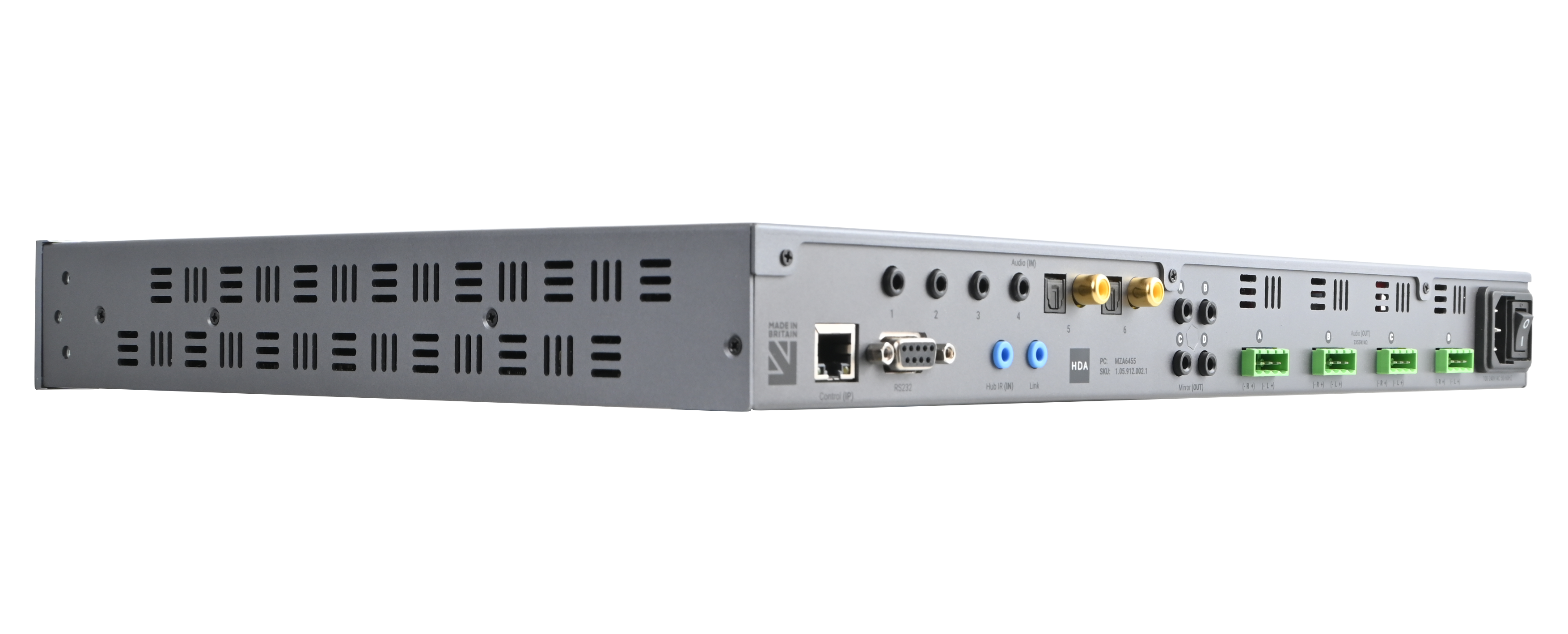

Inputs / Outputs / Line Out: 6 / 4 / 4

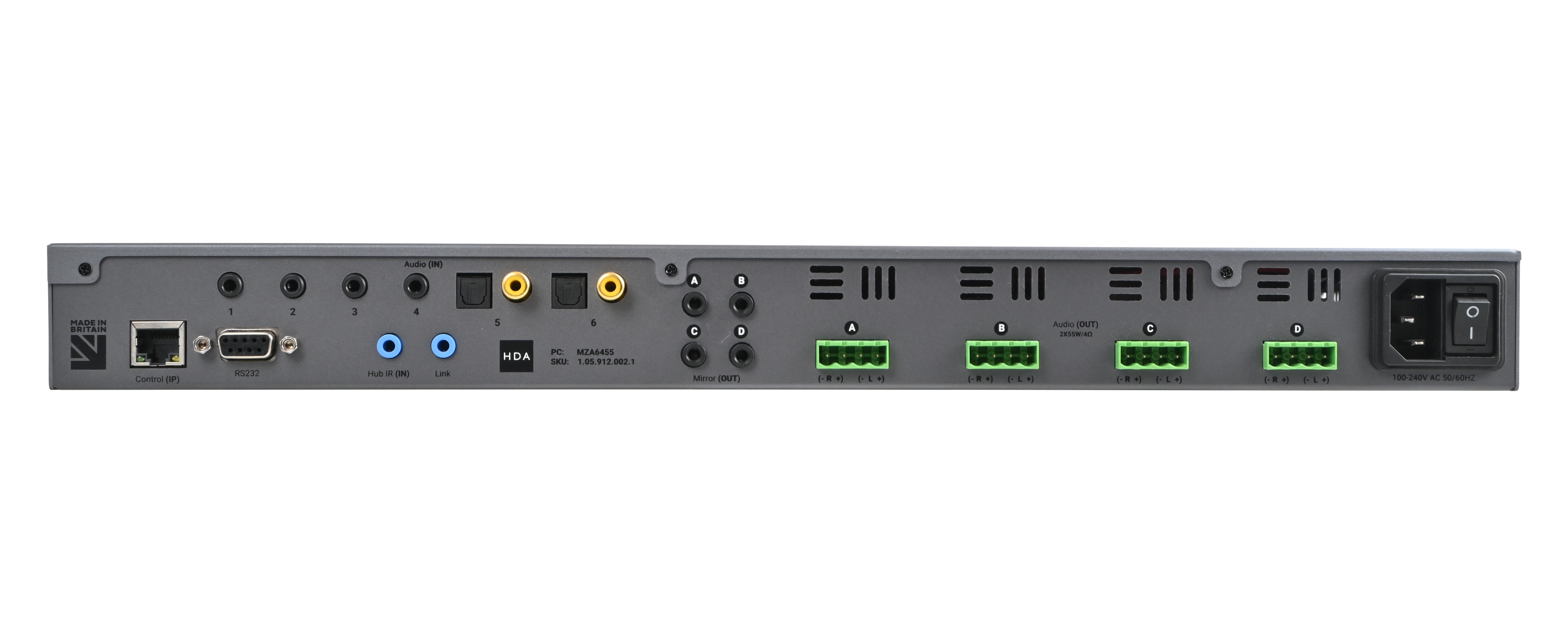

Input Type: 4x 3.5mm Stereo Jack (Analogue), 2x Digital Coaxial & Optical
Output Type: Amplified output (x4)
Supported Audio Format: Stereo
Max Input Level: +12dBu (+9.8dBv)
Input Gain (2dB steps): -14dBu to +16dBu
Amplifier Output Power: 55W per channel at 4Ω, 30W per channel at 8Ω
Channel Output Level (1dB steps): 0dBu – -66dBu (1dB steps) -100dB mute
Max Output Level: -72dB – 0dB
Max Output Level (Line-Out): +16dBu (+14dBv)
EQ (2dB steps): Treble: ±14dB @ 10KHz, Mid: ±14dB @ 1KHz, Bass: ±14dB @ 100Hz
Balance (1dB steps): ±6dB
Power Consumption (W) Min/Max: 14 / 360
Power (V): 110-240V
Operating Temperature (°C): -10 – 60
Dimensions (W/D/H) mm: 440 x 284 x 43
Weight (g): Chassis: 4700, Package: 5750
