MHUB-S (16+16×16) 100A DM

Log in for Pricing

Special Order

SKU: HD87 Category: Tags: , , , , , ,

Description

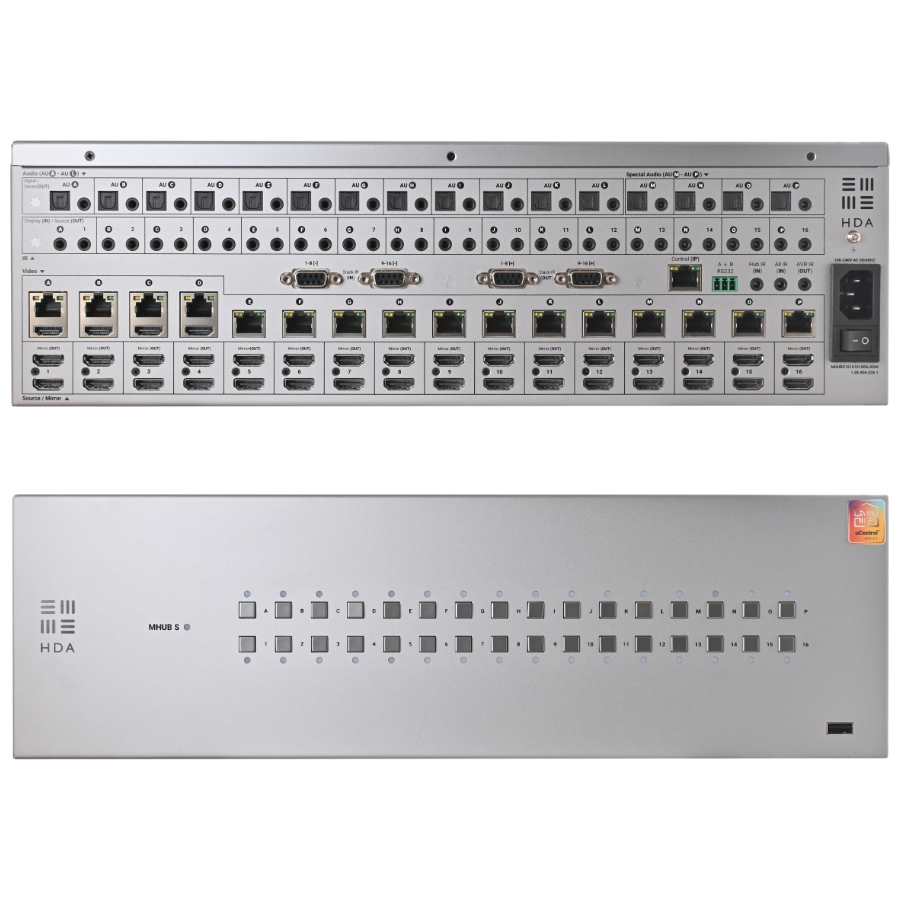

HDA MHUB S (16+16×16) 100A DM – High-Performance AV Distribution for Large-Scale Projects

Part No :- MHUBS161616100ADM

A professional-grade 16×16 AV matrix with downmixing, 4K HDR support and scalable expansion up to 160+ zones.
Designed for premium AV installations with full control integration.

The MHUB S (16+16×16) 100A DM takes AV distribution to the next level with integrated downmixing for seamless multi-room audio. It supports 18Gbps video, Dolby Atmos, DTS:X and delivers full 4K HDR content over 100m. With stackable expansion for 160+ zones, this unit offers a cost-effective alternative to AV-over-IP. Integrated uControl and automation system compatibility make it an ideal choice for residential, commercial and entertainment spaces.



Get access to MHUB S training

HDA Pros gain access to the e-Learning platform which includes how to sell MHUB S, how to set it up and how to use it’s advanced features to control AV and lighting.

Courses span from beginner level (HDMI fundamentals) all the way to advanced configuration techniques, hacking MHUB and marketing courses.

Register for training.



MHUB S Stacking Guide

Manual

Datasheet

Features
  • Advanced Downmixing – Converts multi-channel audio for mixed-use environments
  • Stackable to 160+ Zones – Scalable for large installations
  • uControl for Seamless Management – Simplifies AV control
  • Auto Scaling for 4K & 1080p Displays – Ensures consistent image quality
  • 100m HDBaseT Transmission – Reliable long-distance signal distribution
  • Integrated Audio Routing – Flexible audio extraction and volume control



Specification
 Inputs: x16 HDMI

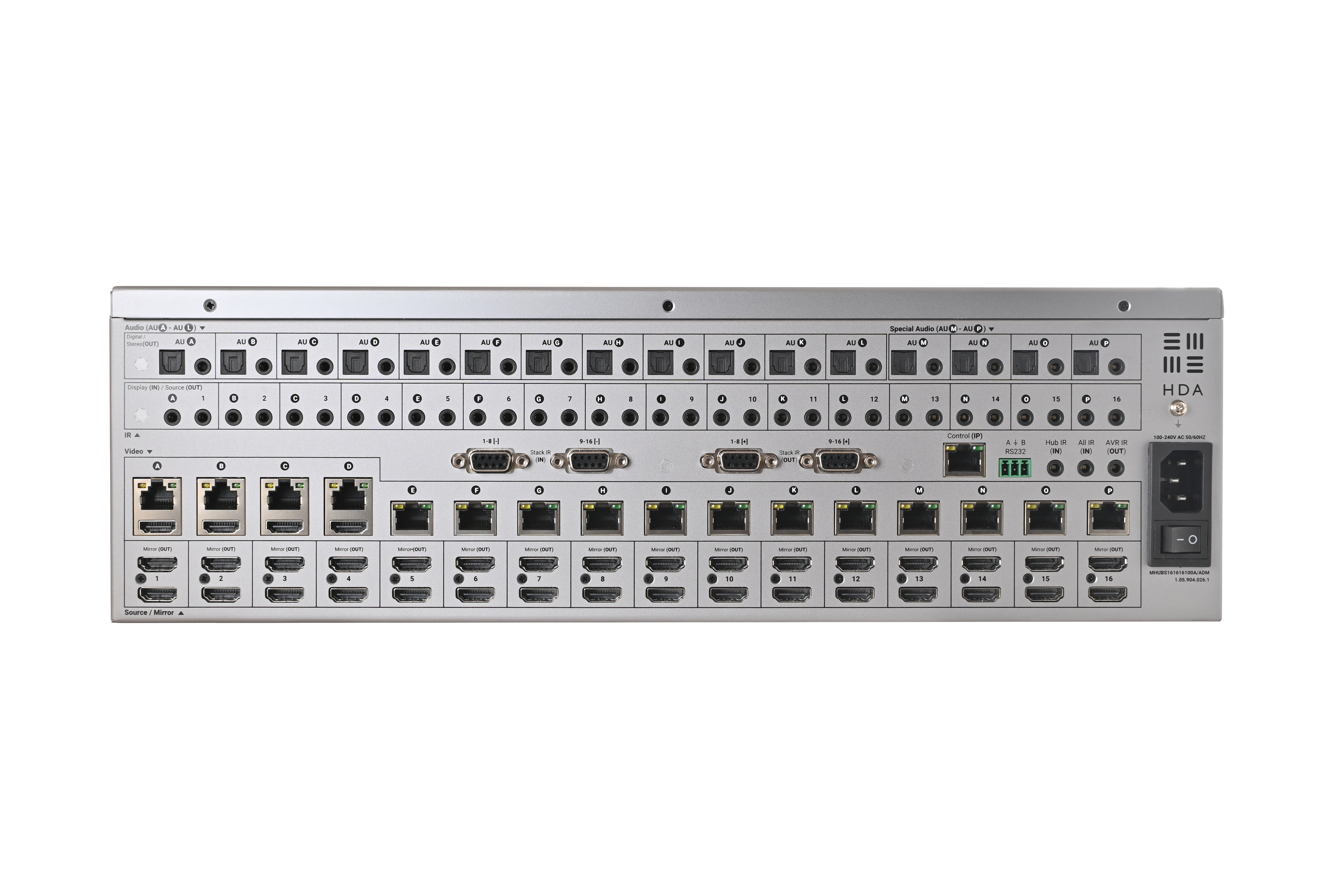

Mirrors / Outputs x16 HDMI, x16 HDMI Mirror (Stacking Ports), x16 HDBaseT, x4 HDMI (AVRs expansion), x16 Optical & Stereo
Video bandwidth 18Gbps
Supported resolutions Up to 4K@60Hz (4:4:4) with HDR
HDR formats HDR10, HDR10+, Dolby Vision*, HLG
Transmission distance 1080p 150m / 4K 100m
ESD protection ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Device weight Chassis: 6300g
Receiver: 187g

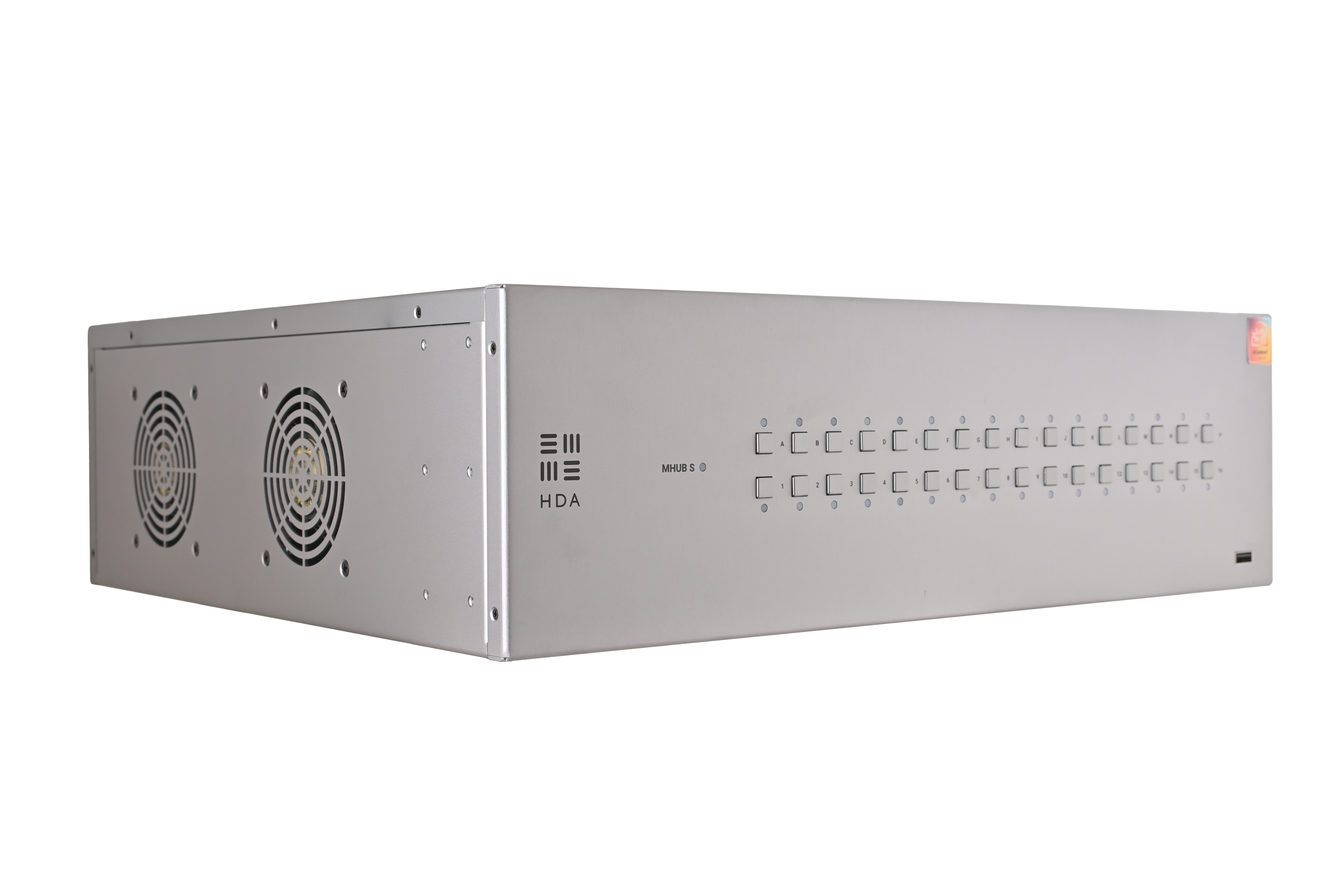

Dimensions (W/D/H)  Chassis: 440 x 398 x 132

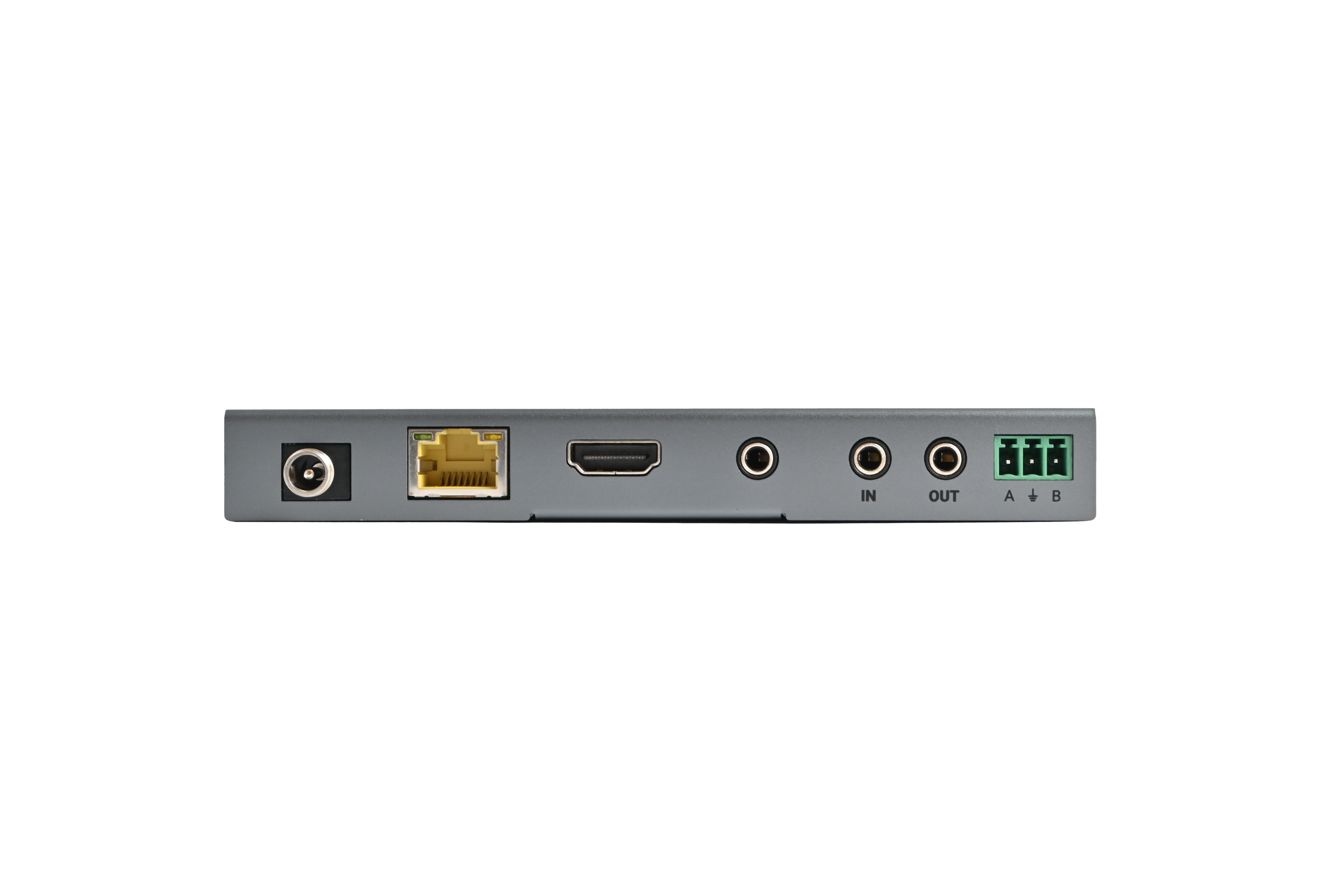

Display receiver: 140 x 65 x 18
Operating temperature 32°F to 104°F (0°C to 40°C)
Storage temperature -4°F to 140°F (-20°C to 60°C)
Relative humidity 20~90 % RH (non-condensing)
Guarantee 2 (+3) years**



*Only Dolby Vision Low Latency Mode is supported at 60Hz over Video TPC output.
** Standard warranty is 2 years. Extend warranty by an additional 3 years if device is registered on HDA Cloud within 30 days of purchase.
