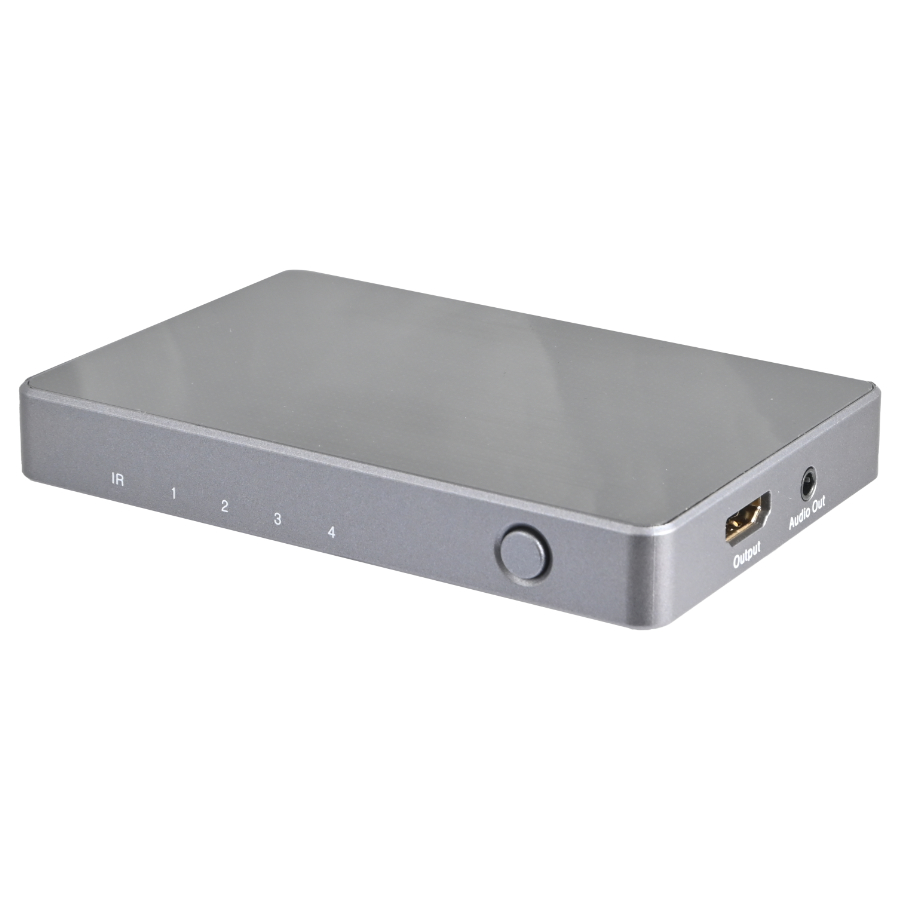

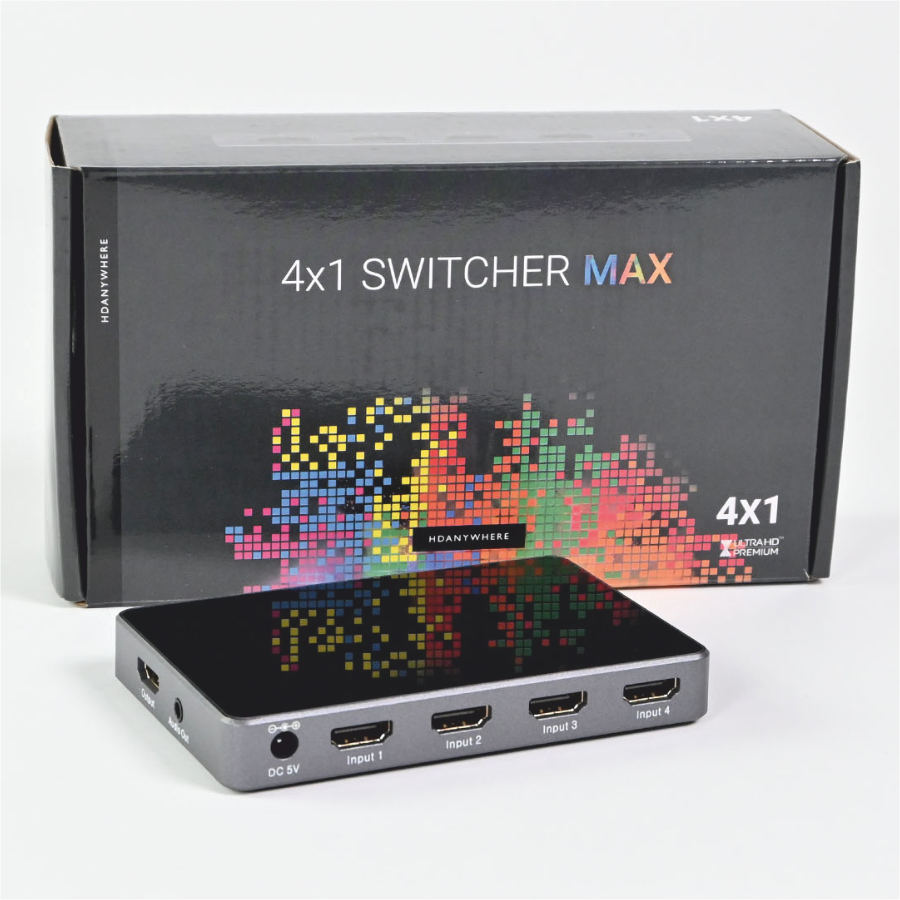

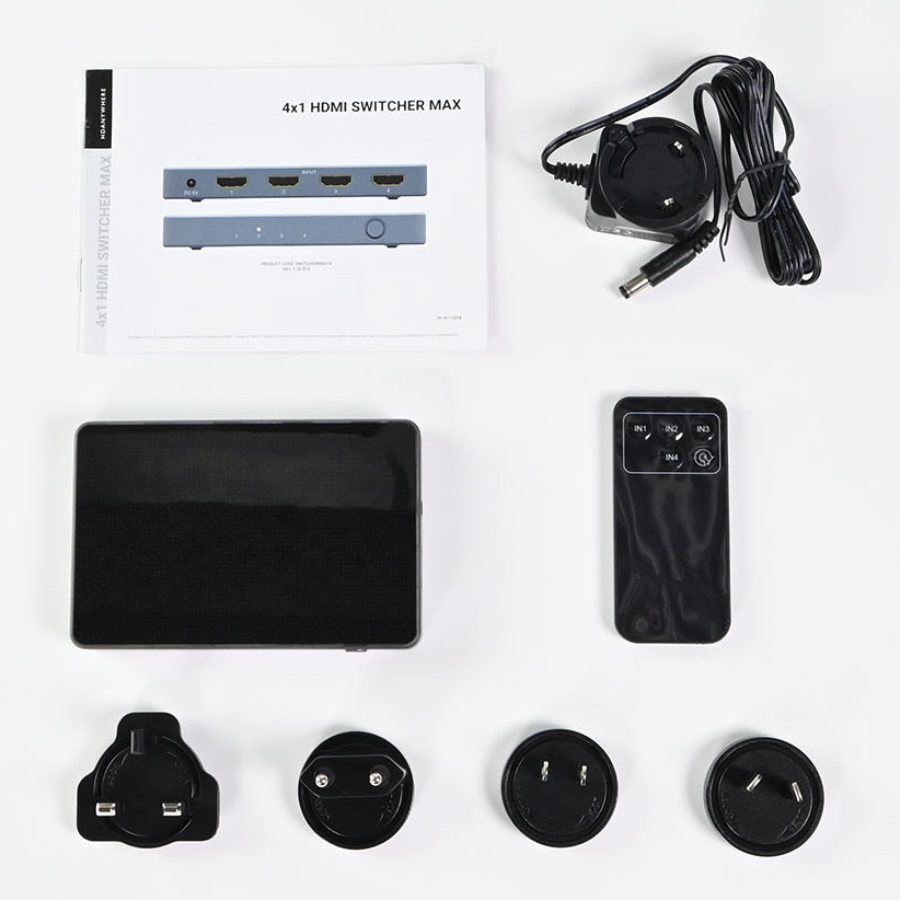

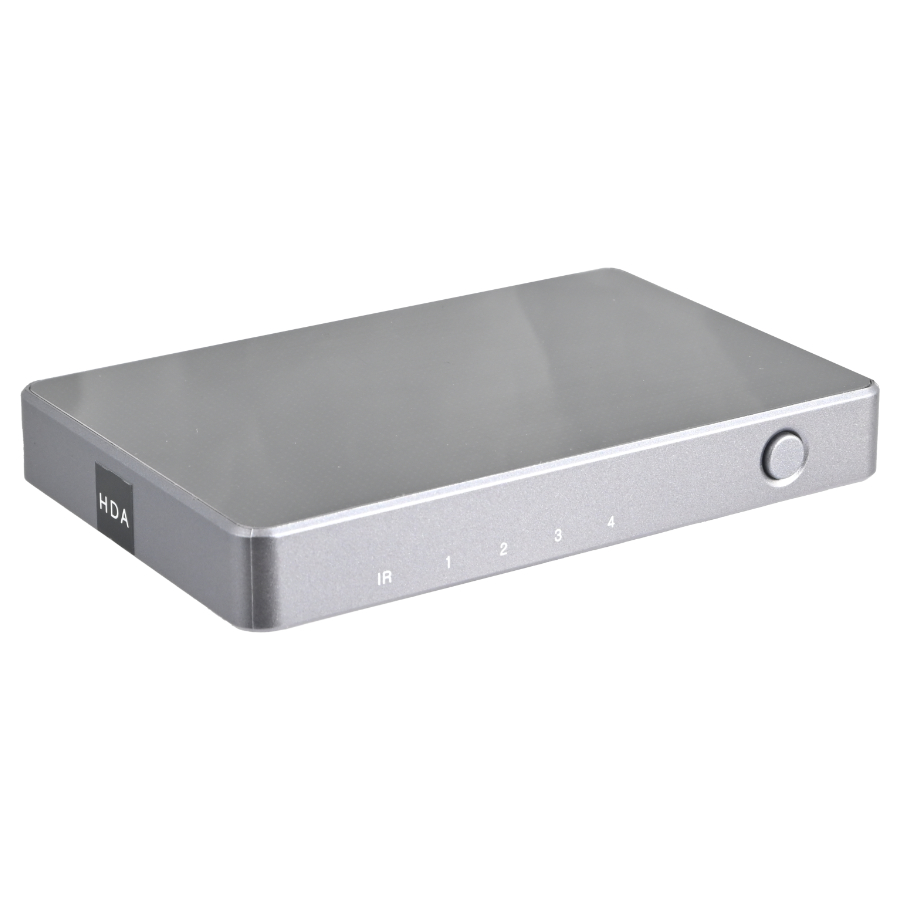

HD Anywhere 4×1 4K Switcher

Log in for Pricing

SKU: HD10 Category: Tags: , , , , ,

Description

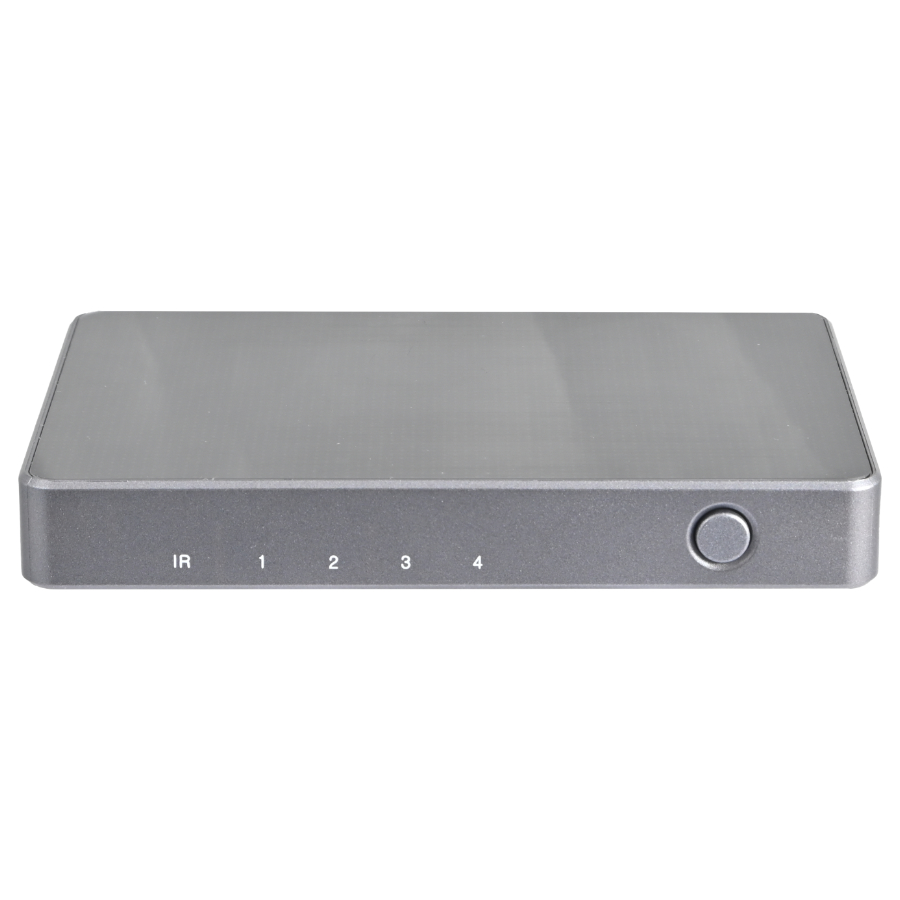

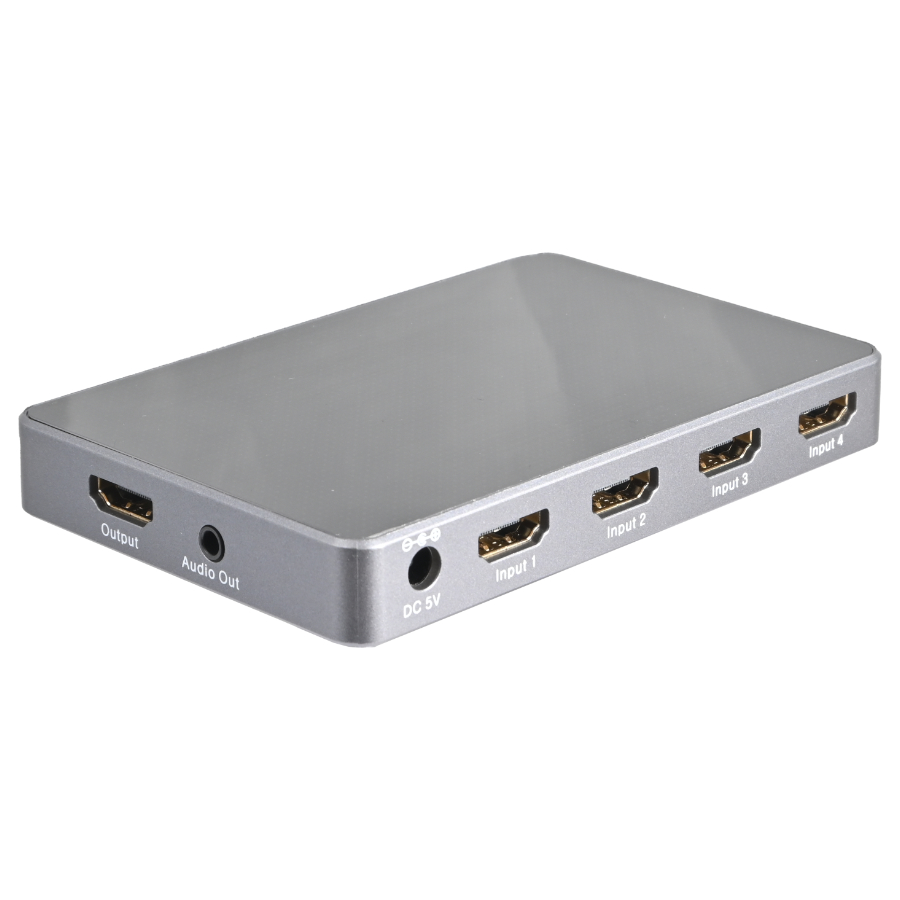

HDA Switcher MAX 4K (4×1)



HDA Switcher MAX (4×1) – Ultra HD Premium 18Gbps HDMI Switcher

A high-performance 4×1 HDMI switcher designed for premium home cinema and professional AV installations. Supports full 18Gbps HDMI 2.0 (a/b), Ultra HD 4K 60 4:4:4, HDR formats and immersive audio formats including Dolby Atmos® and DTS:X®.

The Switcher MAX (4×1) is the ultimate HDMI switching solution for cinema purists and professional AV installations. With full HDMI 2.0 (a/b) and HDCP 2.2 compliance, this switcher delivers 18Gbps bandwidth to ensure pristine Ultra HD 4K 60Hz 4:4:4 video quality without compromise.

Supporting all major HDR formats, including Dolby Vision®, HDR10+ and HLG, the Switcher MAX ensures that every frame is displayed with enhanced contrast and vibrant colour accuracy. It also supports the latest immersive audio formats, including Dolby Atmos® and DTS:X®, making it ideal for high-end home theatre setups.

Designed for seamless signal integrity, the built-in equaliser and re-timer optimise signal stability, reducing interference and ensuring a reliable connection across multiple devices. The compact and lightweight enclosure makes it easy to integrate into any AV setup, whether for home entertainment, gaming or commercial applications.



Manual

Datasheet









Features

HDMI® 2.0 (a/b) HDCP 2.2 compliant
18Gbps data rate throughout
Supports all resolutions up to and inc. Ultra HD 4K 60 4:4:4
Supports all current High Dynamic Range (HDR) formats
Supports all current audio formats up to Dolby Atmos® and DTS:X®
Built-in equalizer and re-timer

Specification

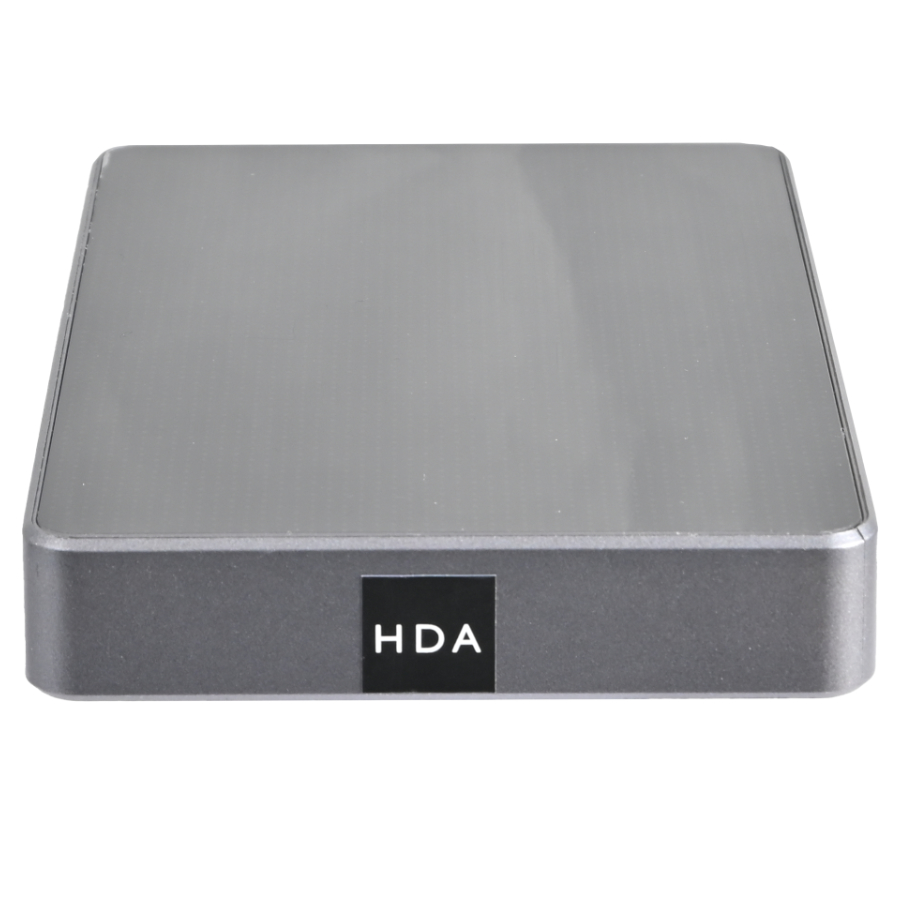

Form factor Lightweight slender plastic enclosure

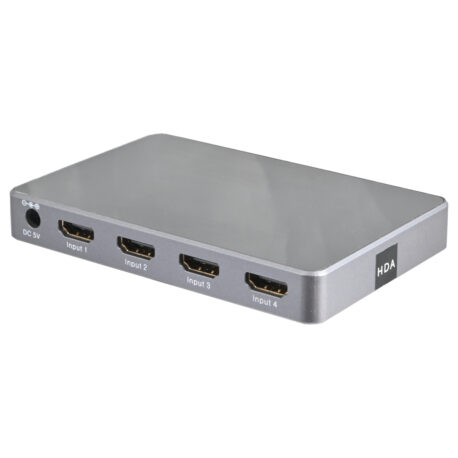

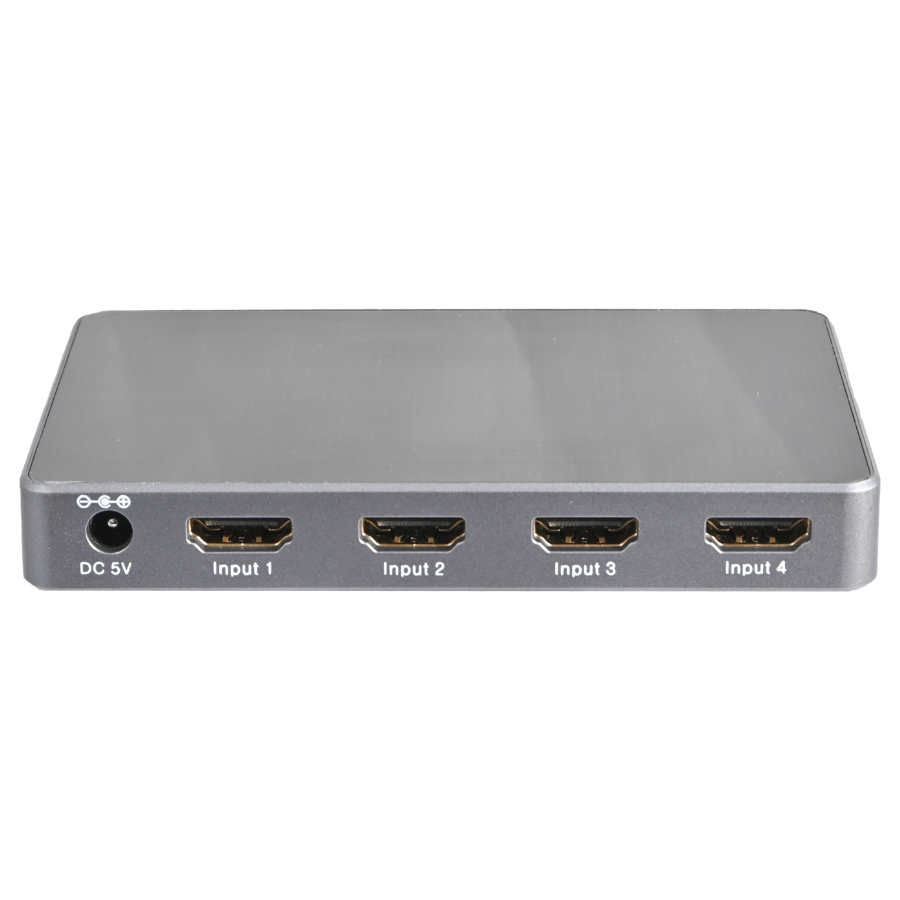

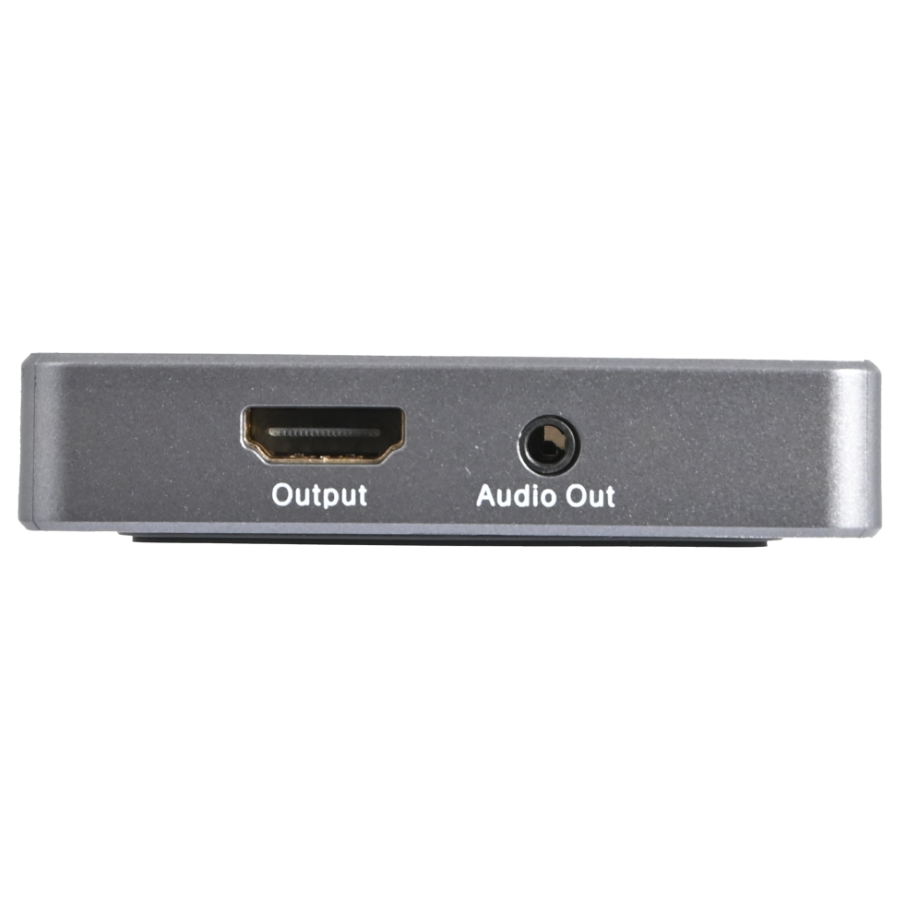

Inputs x outputs 4 HDMI / 1 HDMI
Transmission tech. Native HDMI
Video bandwidth 18GBPS
ESD protection ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Device / Package weight 195g
Dimensions (W/D/H) 120.97 / 79.17 / 16mm
Power Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Operating temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative humidity 20~90 % RH (non-condensing)
Power consumption 1 W
Guarantee 2-year guarantee
