Description
Reyee RG-EST330 P, Dual-Radio 3KM Wireless Bridge (Single)
Product: RG-EST350 V2
Highlight Features

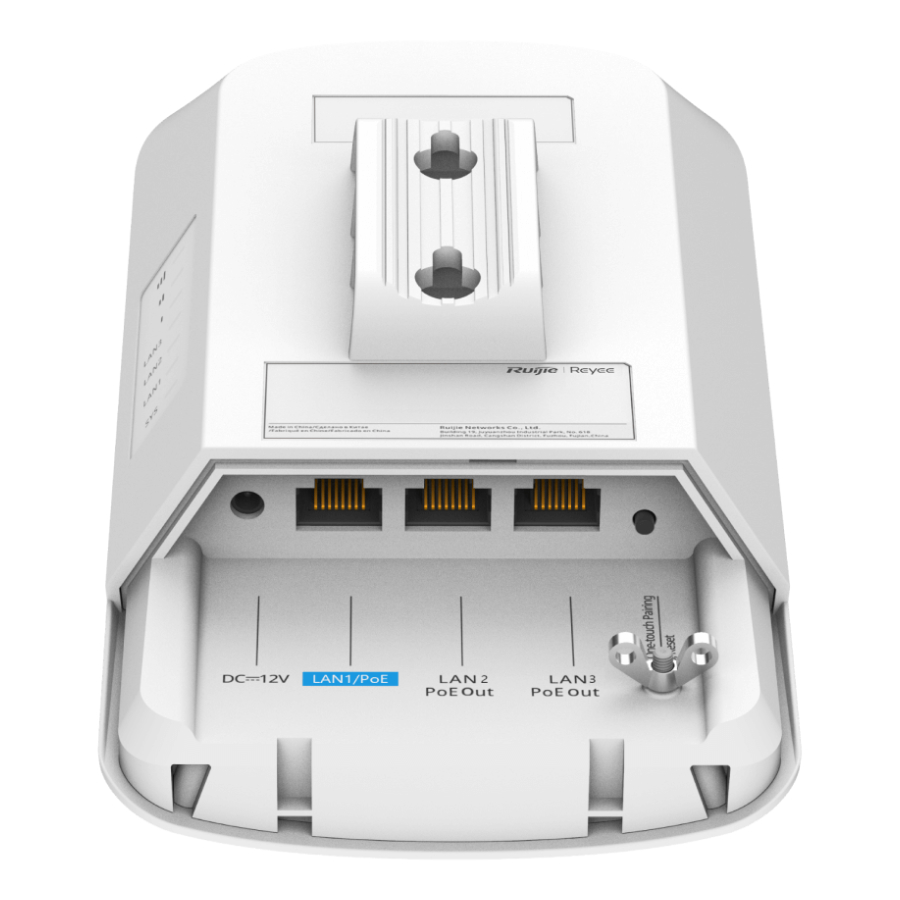

- 3 x FE Ports, including 2 x PoE Out Ports
- Support 3 Power Supply Options: 12 V DC, Passive PoE, 802.3af/at

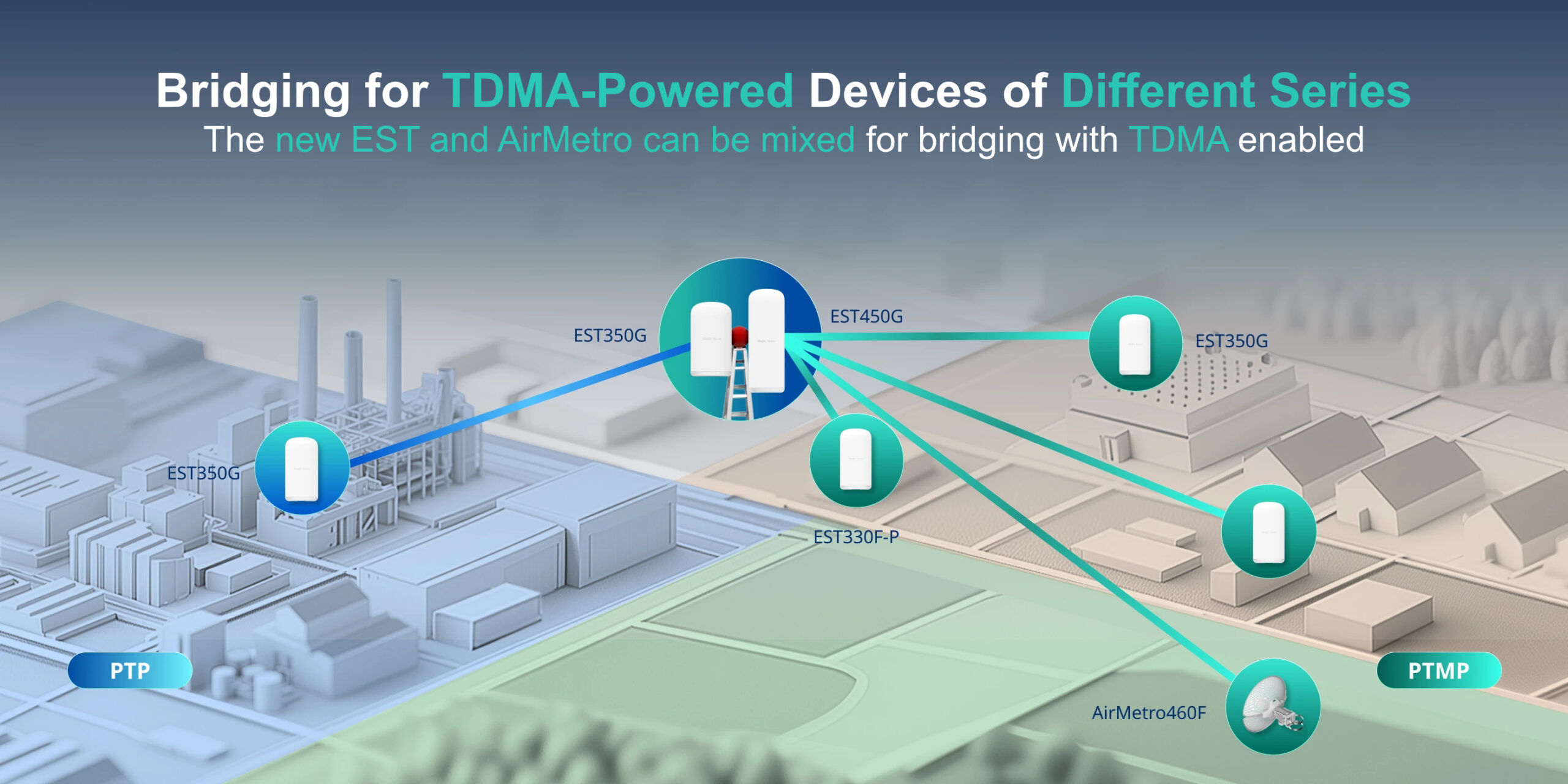

- Support TDMA
- Support SON
Key Specification
Radio Design:
Dual-radio
3 spatial streams
● Radio 1: 2.4 GHz, 1 spatial stream: 1 x 1, SISO
● Radio 2: 5 GHz, 2 spatial streams: 2 x 2, MIMO
2.4 GHz channel width:Auto/20/40 MHz
5 GHz channel width: Auto/20/40/80 MHz
Wi-Fi Standard:
2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n)
5 GHz Wi-Fi: Wi-Fi 5 (IEEE 802.11ac)
2.4 GHz channel width: Auto/20/40 MHz
5 GHz channel width: Auto/20/40/80 MHz
5 GHz Wi-Fi: Wi-Fi 5 (IEEE 802.11ac)
2.4 GHz channel width: Auto/20/40 MHz
5 GHz channel width: Auto/20/40/80 MHz
Transmission rate:
Maximum wireless data rate: 1166 Mbps
Radio 1: 2.4 GHz, 300 Mbps
Radio 2: 5 GHz, 866 Mbps
Maximum wireless data rate: 1166 Mbps
Radio 1: 2.4 GHz, 300 Mbps
Radio 2: 5 GHz, 866 Mbps
Port Specification:
Number of fixed LAN Ports: 3
Number of 10/100BASE-T ports: 3
Reset button: 1

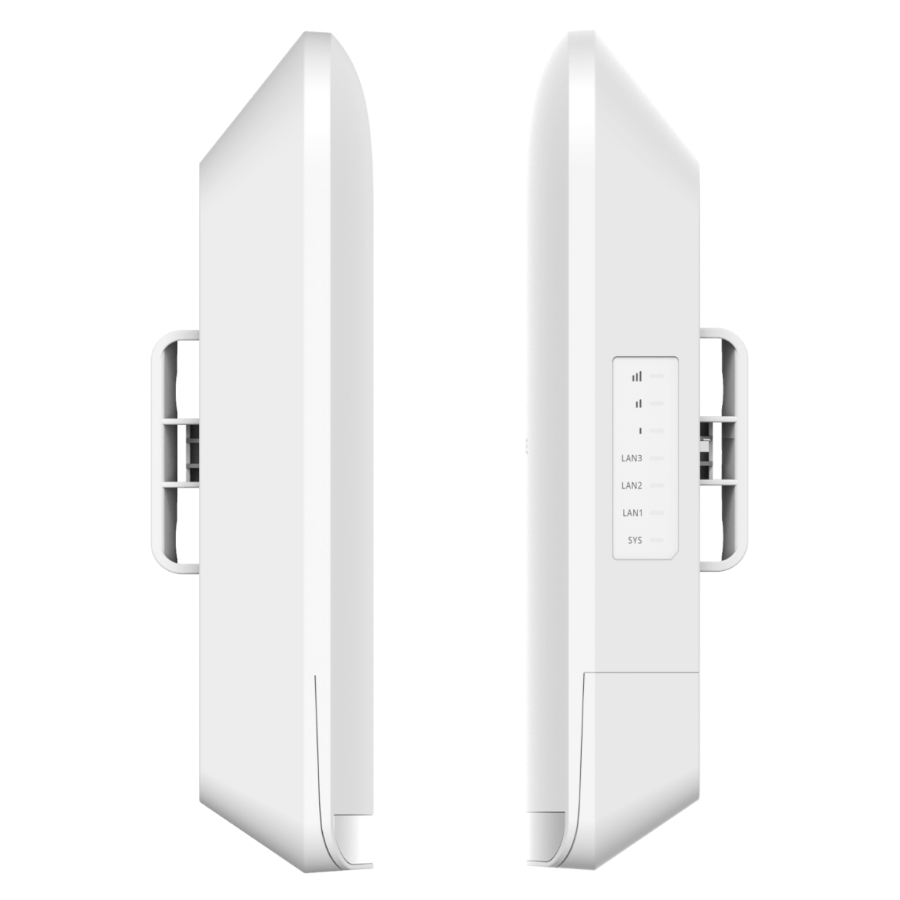

LEDs:
1 x system status LED
3 x Ethernet port LEDs
3 x signal status LEDs
Number of 10/100BASE-T ports: 3
Reset button: 1
LEDs:
1 x system status LED
3 x Ethernet port LEDs
3 x signal status LEDs
Antenna:
2.4 GHz: 1 x 1 Built-in omnidirectional antenna
5 GHz: 2 x 2 Built-in directional antenna,
5 GHz: 2 x 2 Built-in directional antenna,
Horizontal: 30°, Vertical: 30°
Weatherproof: IP55
Operating Temperature: -30°C to 55°C (-22°F ~ 131°F)
Demensions: 103 mm x 53.4 mm x 199 mm
Certification: CE, RoHS
Recommended Distance: 3KM
Weight: 0.91 kg
Warranty: 3 Years
