Description

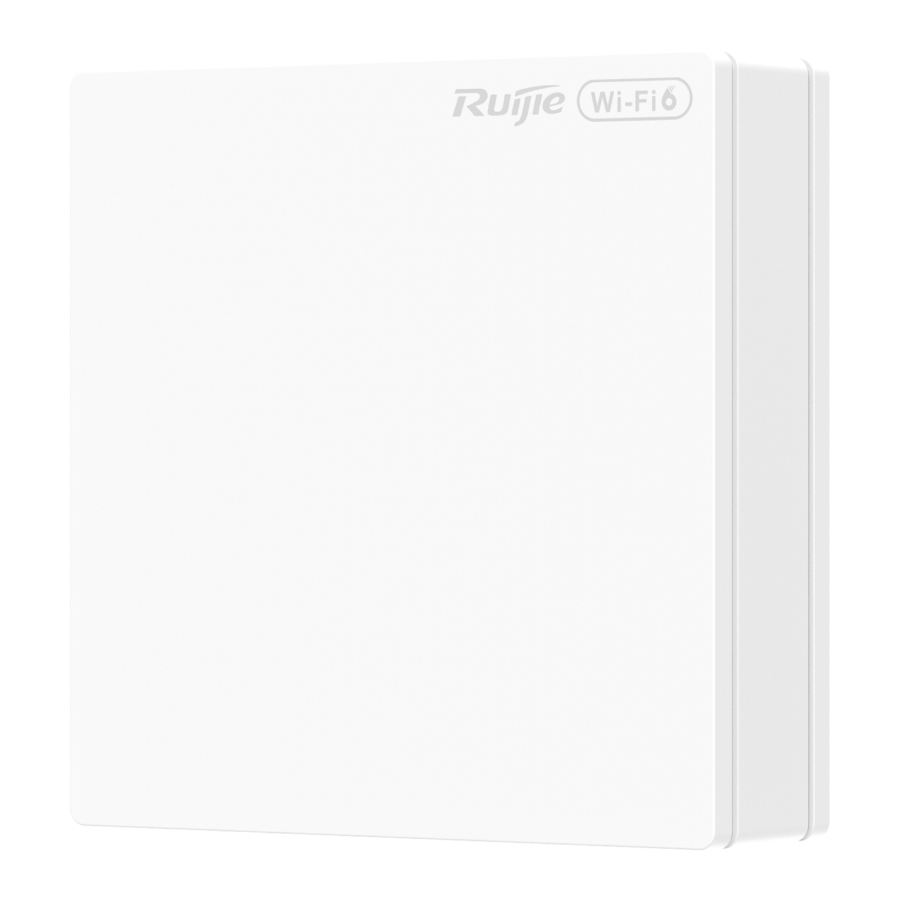

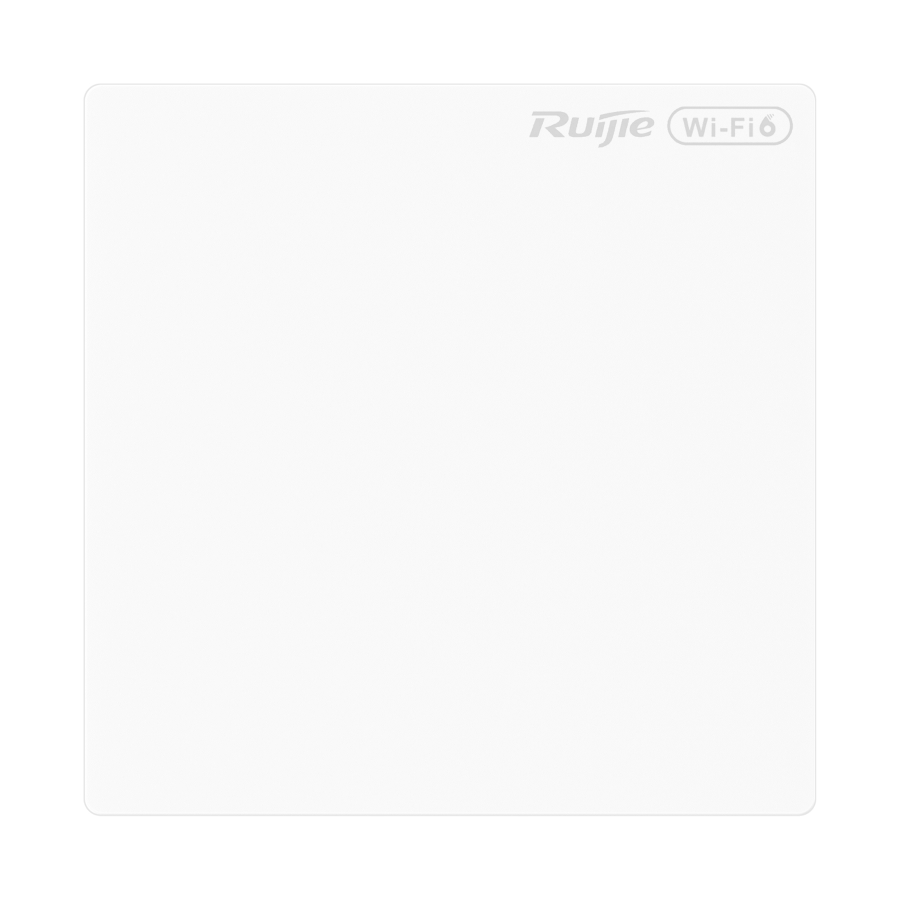

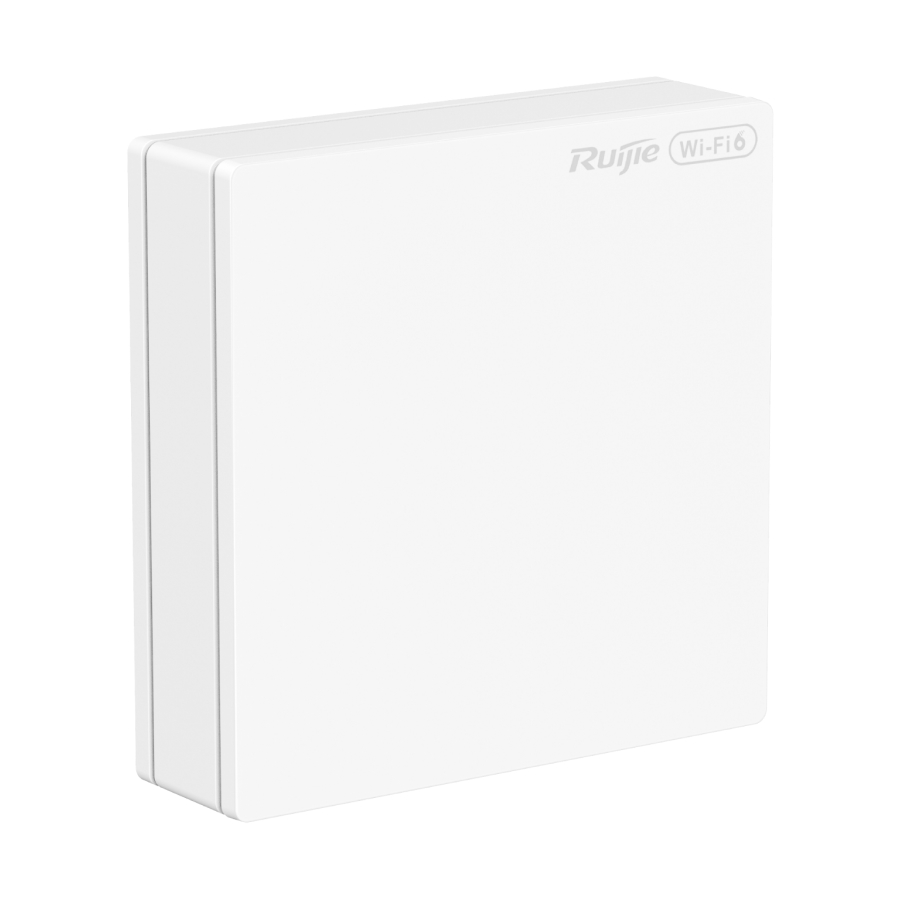

Reyee Wi-Fi 6 AX3000 2974Mbps Wall Mounted Access Point – Uniquely Refined Design
Product: RG-RAP62-WALL-LITE
Experience Wi-Fi 6, Experience Gigabit Internet
New upgrade to AX3000, Speed Test reaches 2401Mbps in 5GHz, Max 573 Mbps in 2.4GHz.
Suitable for five-star hotels, offices, and other similar scenarios.
Highlight Features
- Dual-radio performance, gigabit wireless wall-mounted AP
- Compatible with 86-mm and EU standard junction boxes
- Blending into the indoor environment

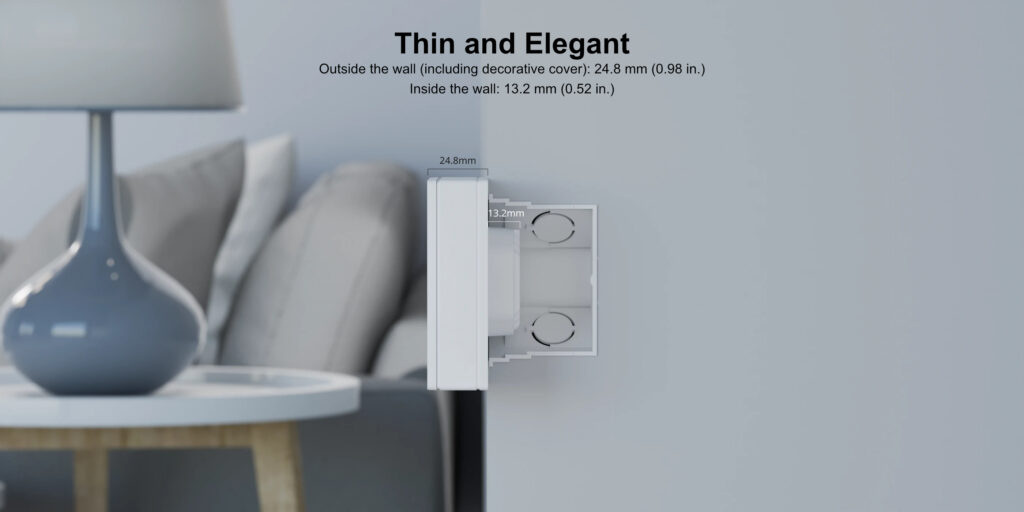

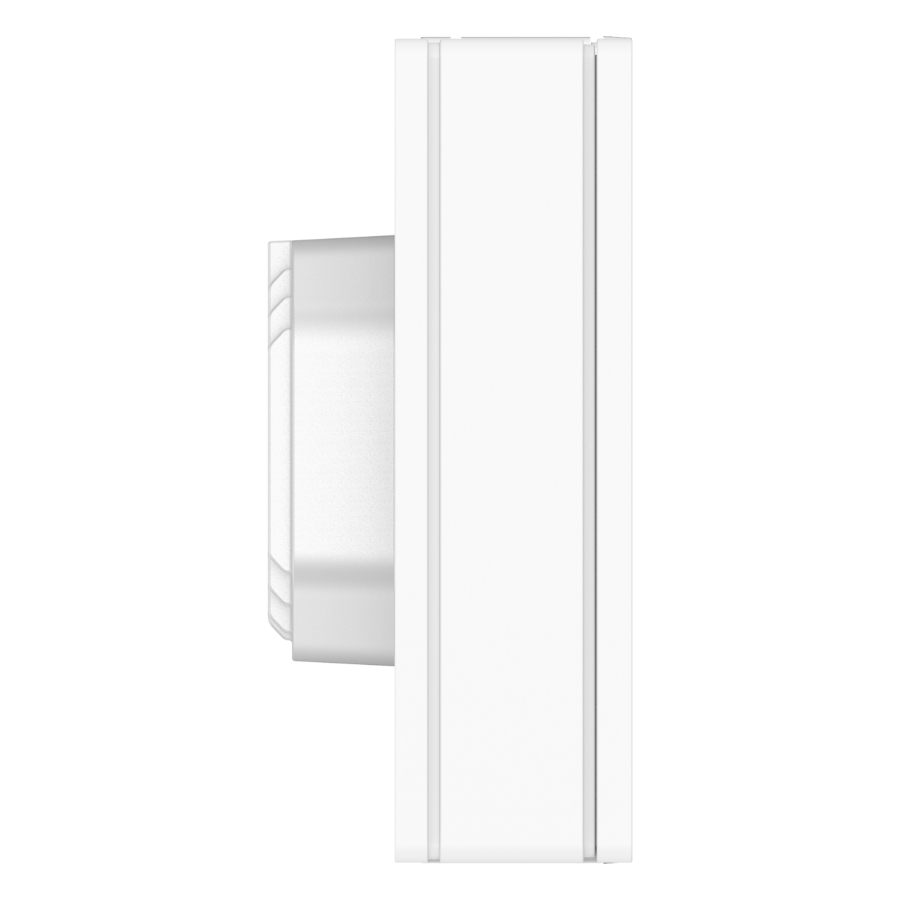

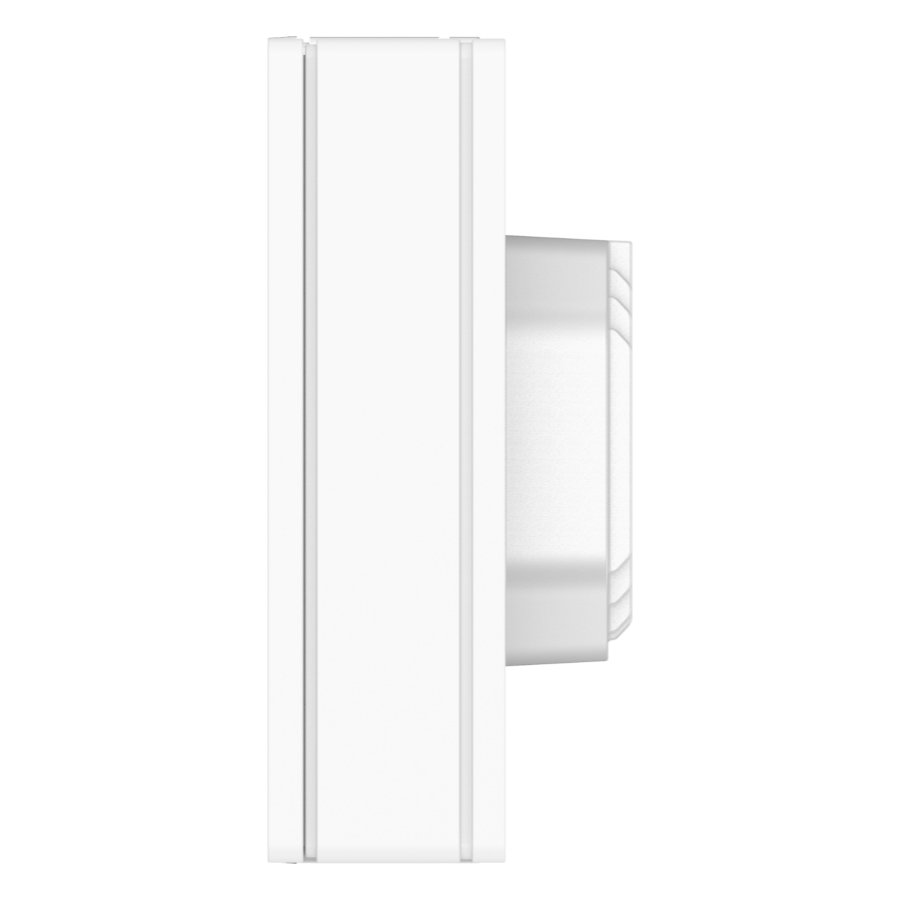

- Thickness-segmented design, with only 24.8 mm (0.98 in.) exposed on the wall
- Centralised management on Ruijie Cloud
Cloud, Make Your Business Easy
- AI Roaming
- AI Network Optimisation
- AI Heatmap Pro
- AI Diagnostics
- Upgrade firmware via Cloud
User Manual
Datasheet

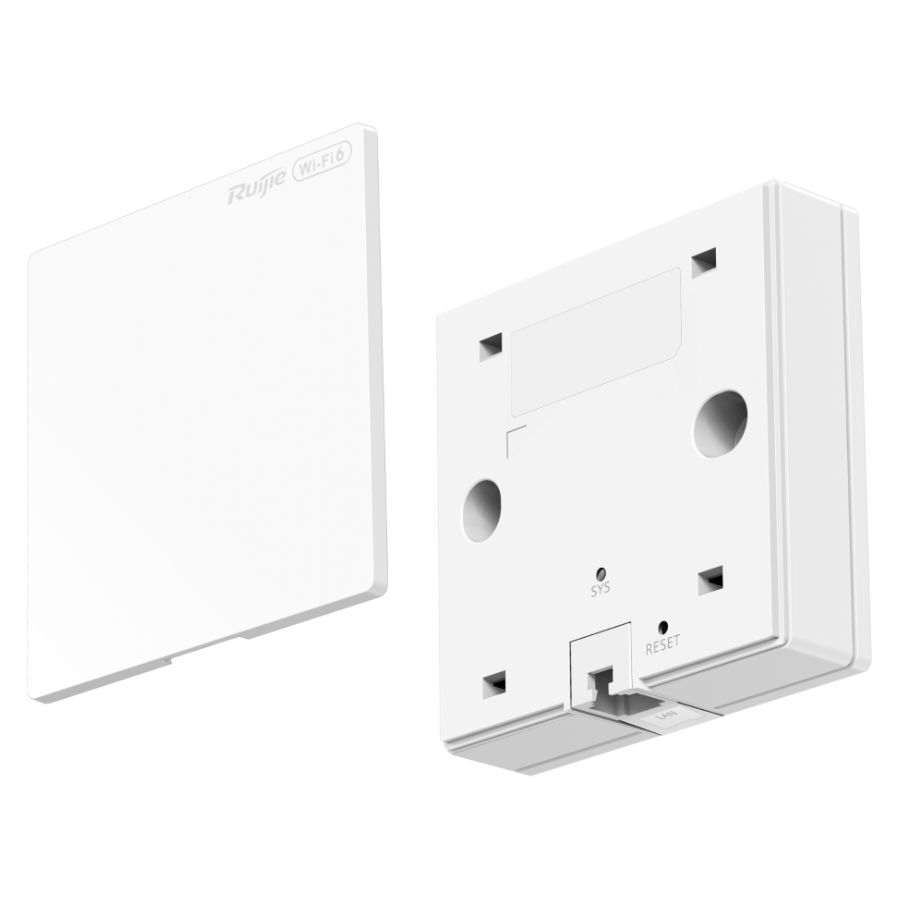

From Walls to Ceilings — Install It Your Way

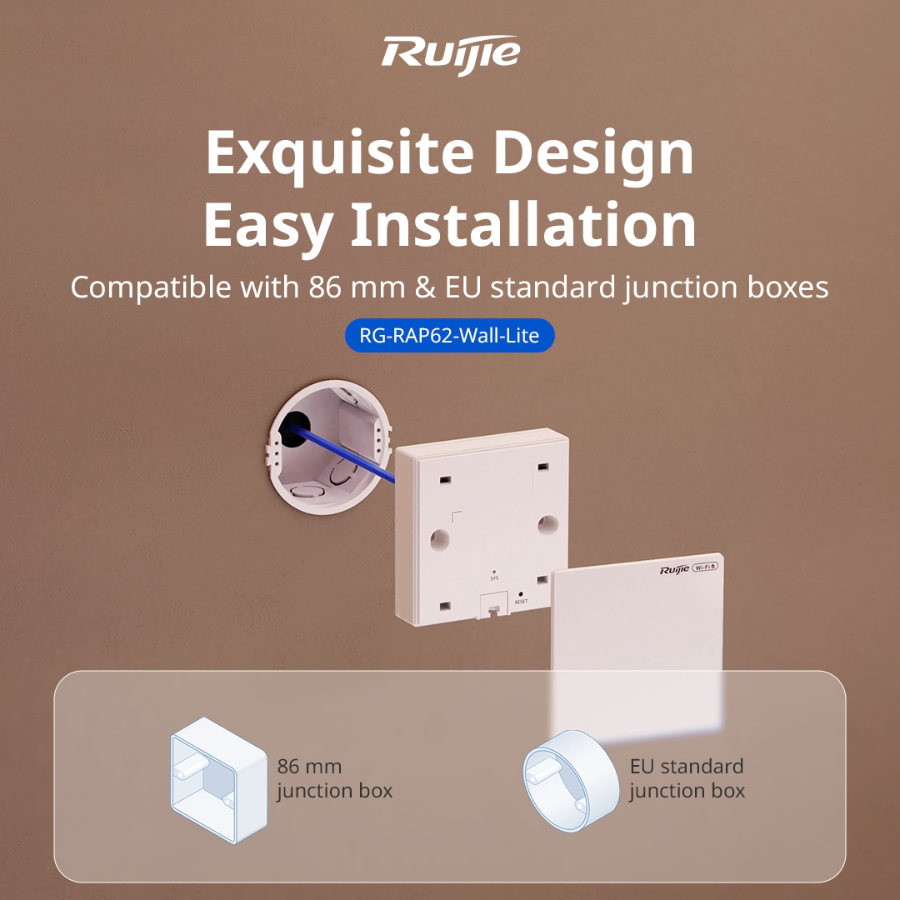

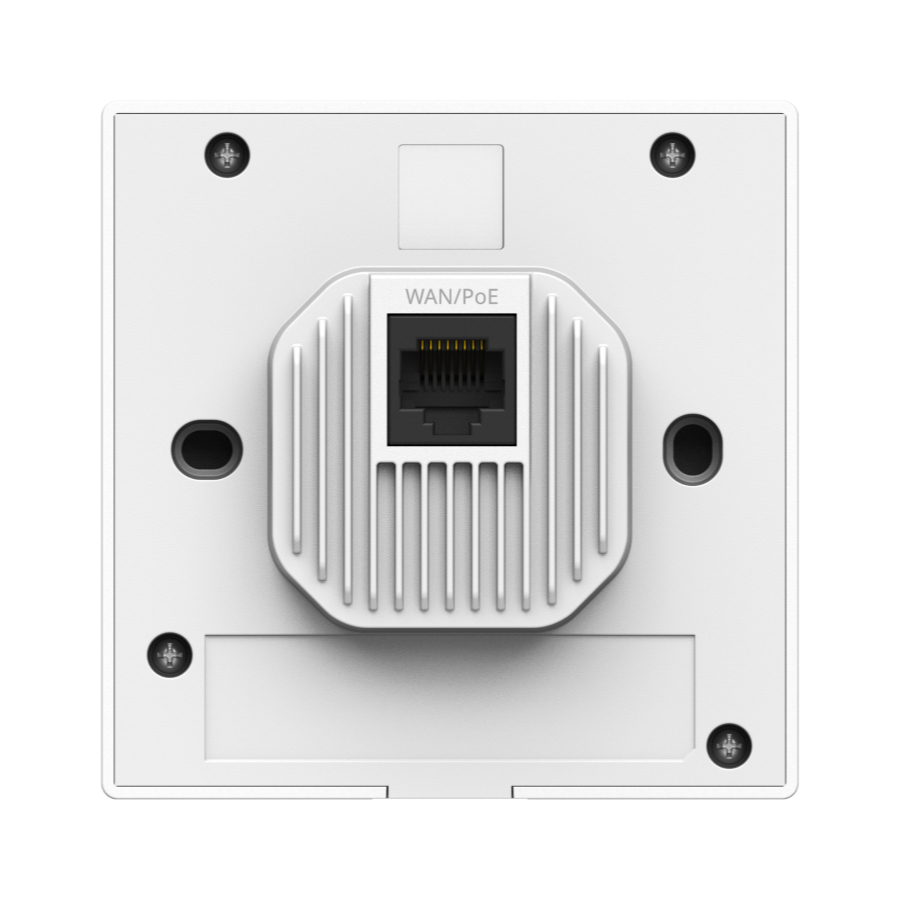

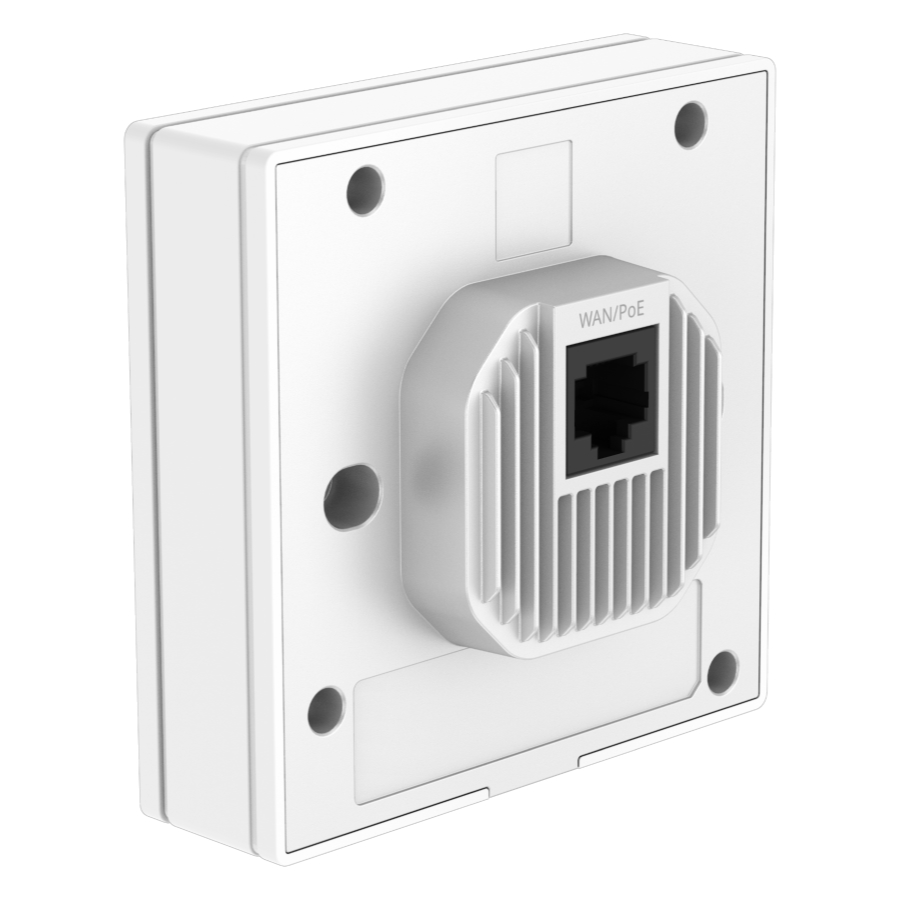

Compatible with 86 mm & EU standard junction boxes
Basic Features
- Wi-Fi Standards:
- Wi-Fi 4 – (IEEE 802.11a/n)
- Wi-Fi 5 – (IEEE 802.11ac)
- Wi-Fi 6 – (IEEE 802.11ax)
- MIMO:
- Dual Radio – 4 Spatial Streams
- 2.4 GHz, 2×2, MU-MIMO
- 5 GHz, 2×2, MU-MIMO
- Max. Data Rate:
- 2.4 GHz: 574 Mbps
- 5 GHz: 2402 Mbps
- Number of Antennas:
- 5
- Antenna Type:
- 5 GHz: 1 Built-in omnidirectional antennas
- Integrated 2.4 GHz and 5GHz: 2 built-in omnidirectional antennas
- Antenna Gain:
- 2.4 GHz: 3.07 dBi;
- 5 GHz: 4.42 dBi
- Transmit Power:
- 2.4 GHz: 21 dBm
- 5 GHz: 21 dBm
- Note: The transmitted power may vary based on local laws and regulations.

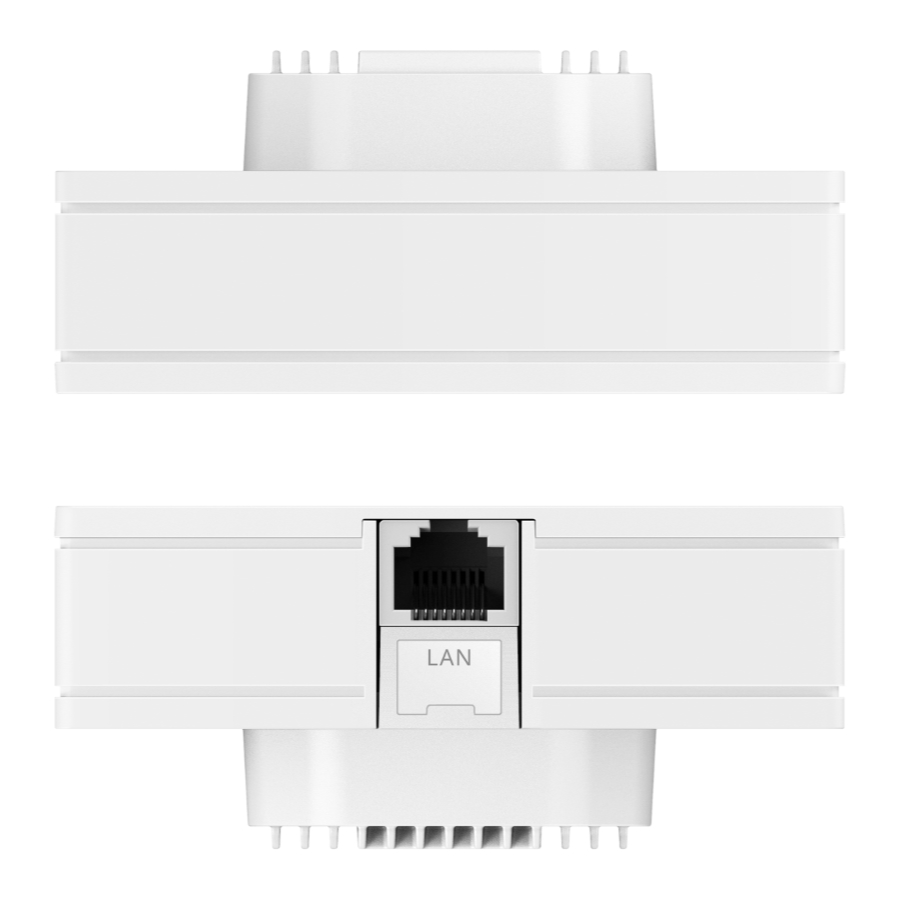

- Fixed Ports:
- 1 x 10/100/1000Base-T Ethernet uplink port
- 1 x 10/100/1000Base-T Ethernet downlink ports

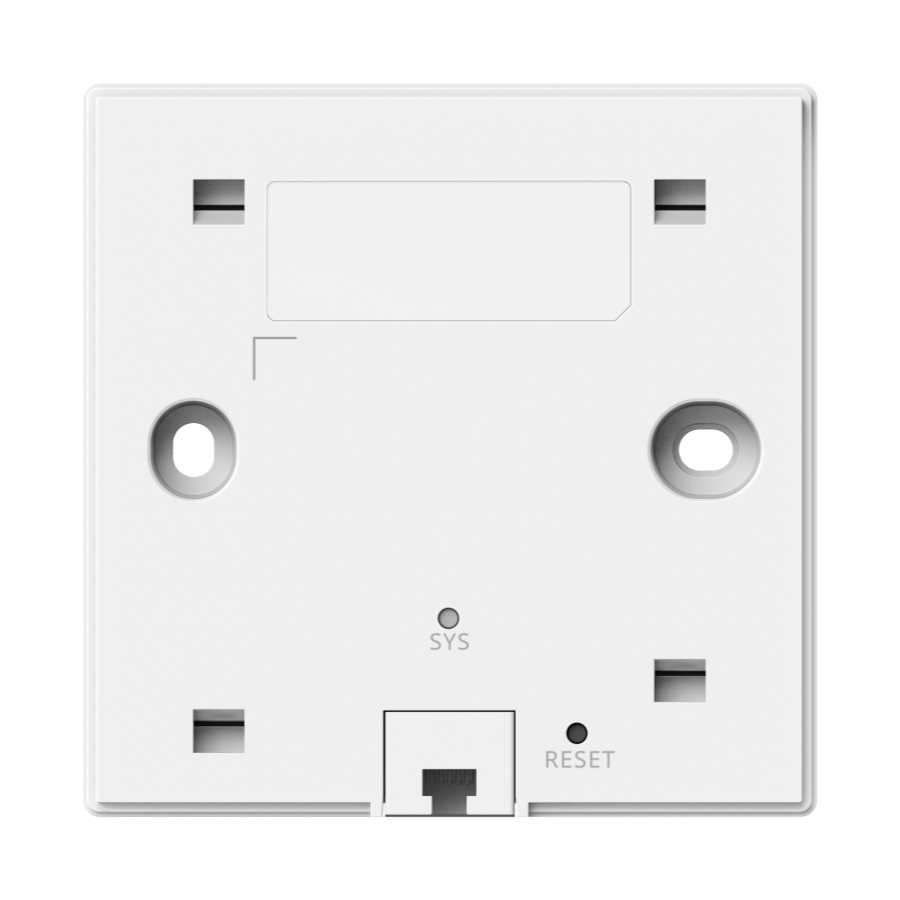

- 1 x Reset Button
- Max. Number of Associated Wireless Clients:
- 64 (2.4 GHz)
- 256 (5 GHz)
- Recommended Number Associated Wireless Clients:
- Support for IEEE 802.11ax and 160 MHz
- 16 (2.4 GHz)
- 94 (5 GHz)
- 110 (2.4 Ghz and 5GHz enabled)
- Support for IEEE 802.11ax and 80 MHz
- 16 (2.4 GHz)
- 64 (5 GHz)
- 80 (2.4 Ghz and 5GHz enabled)
- Support for IEEE 802.11ac
- 8 (2.4 GHz)
- 32 (5 GHz)
- 40 (2.4 Ghz and 5GHz enabled)
- Max. Number of SSIDs:
- 8
