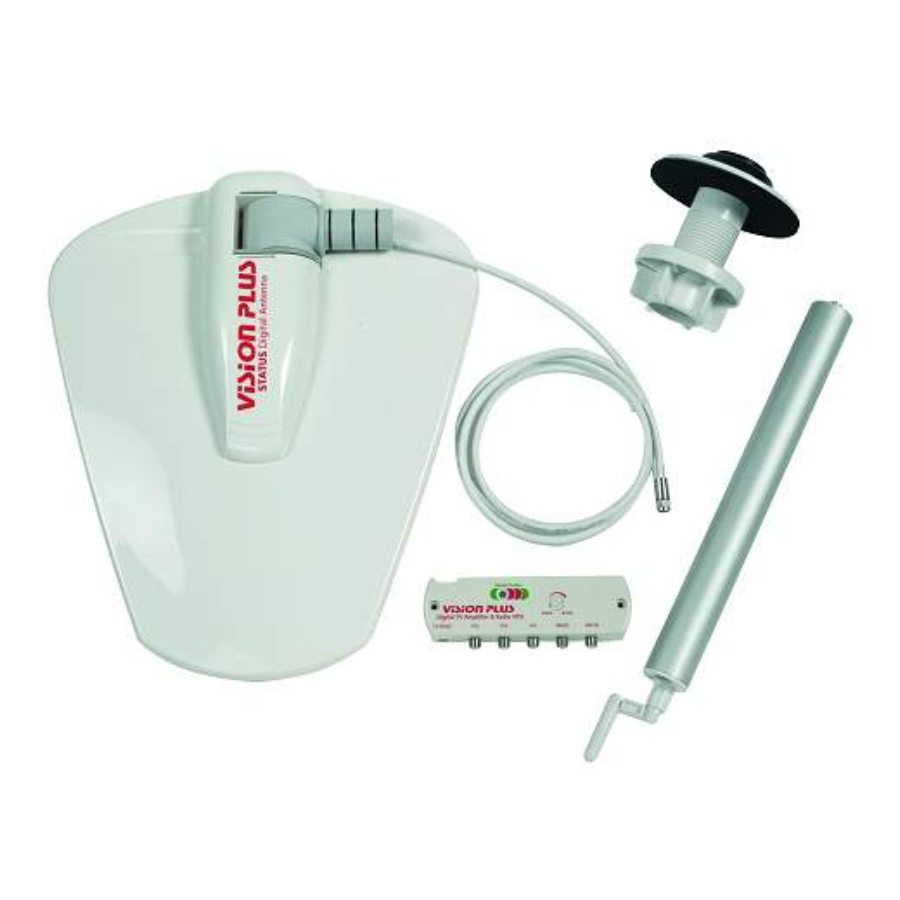

Vision Plus Directional Digital Antenna System – TV & FM/DAB
Model – STATUS 570 – 04-3070
At the heart of this new antenna system is the Vision Plus VP5 Digital TV Amplifier with unique integral Signal Finder.
With its neat, slim-line design, the VP5 offers the latest in TV / Radio reception technology and features:
Features:
- Unique integrated TV Signal Finder
- Horizontal & Vertical Polarisation Indicator
- Low Profile Roof Assembly
- DAB & FM Radio Reception
- Slim-line compact design
- 12 – 24V DC Power Input connection
- On / Off Power switch
* Fixed FM radio antennas
- Digital TV, DAB and FM Radio reception
- Dedicated TV Transmitter locator – Signal Finder
- LED light power indicator with red, yellow and green colours to indicate signal strength
- Variable Gain Control for strong and weak signal areas
- 3 TV Connections and 1 dedicated Radio connection
- Antenna IN connection
* 3 year guarantee

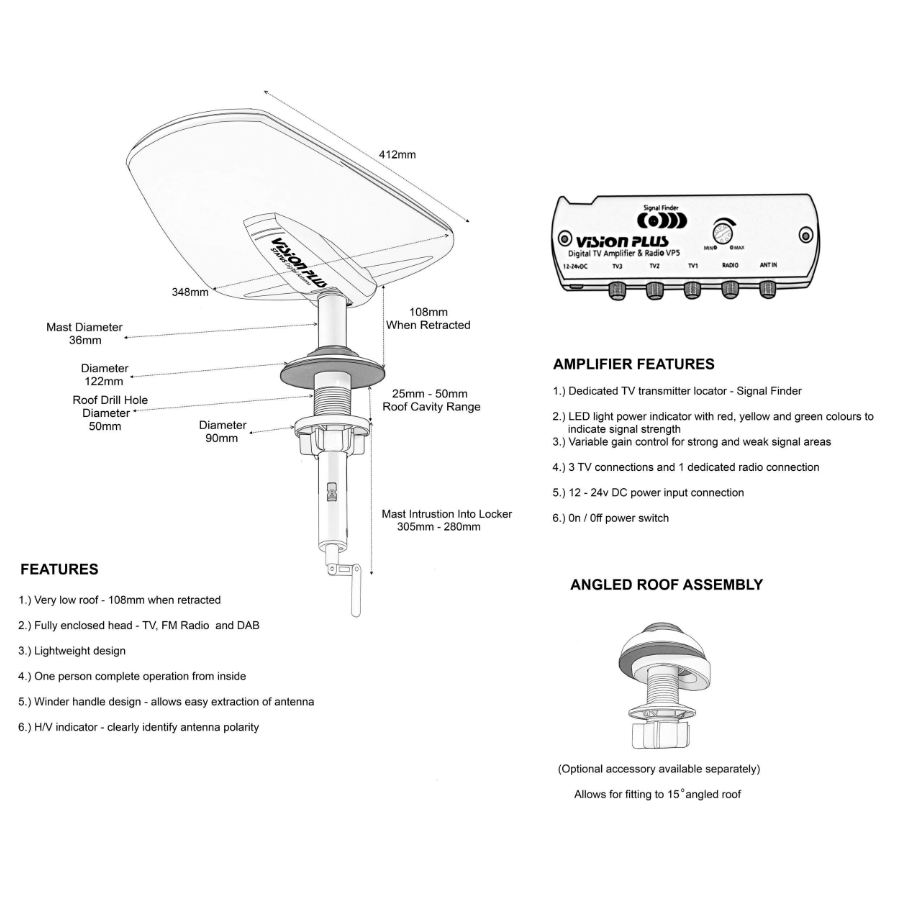

Dimensions
* Mast Length 330mm

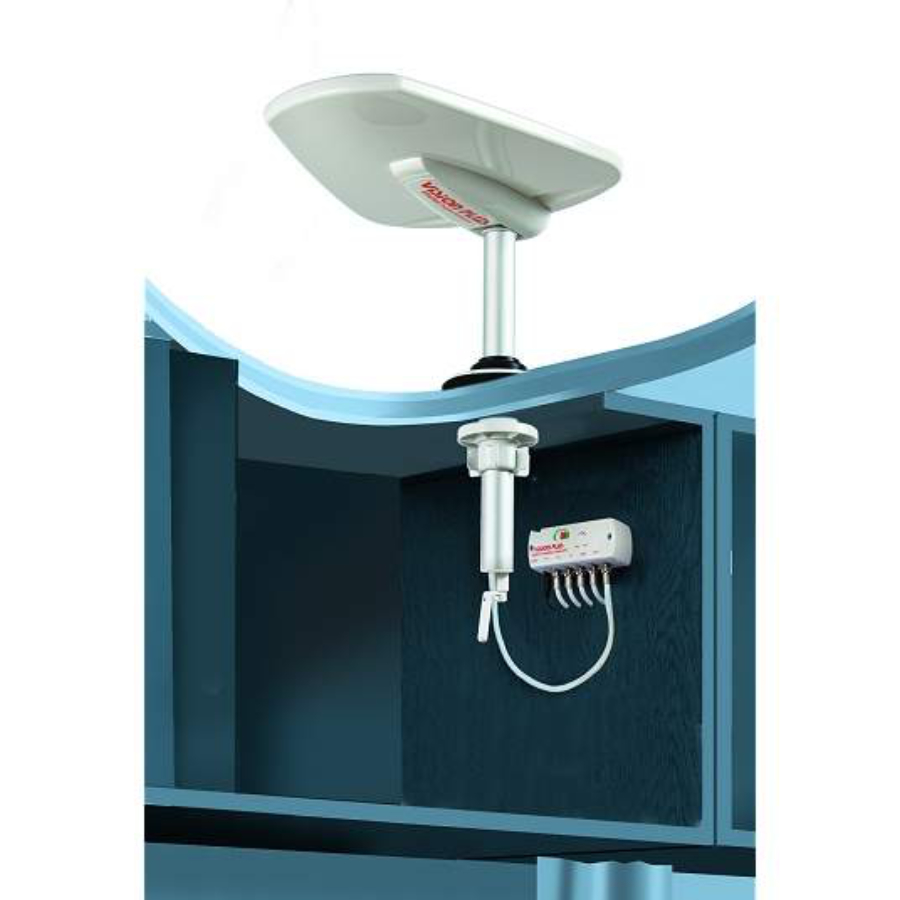

* Mast intrusion into locker 305-280mm

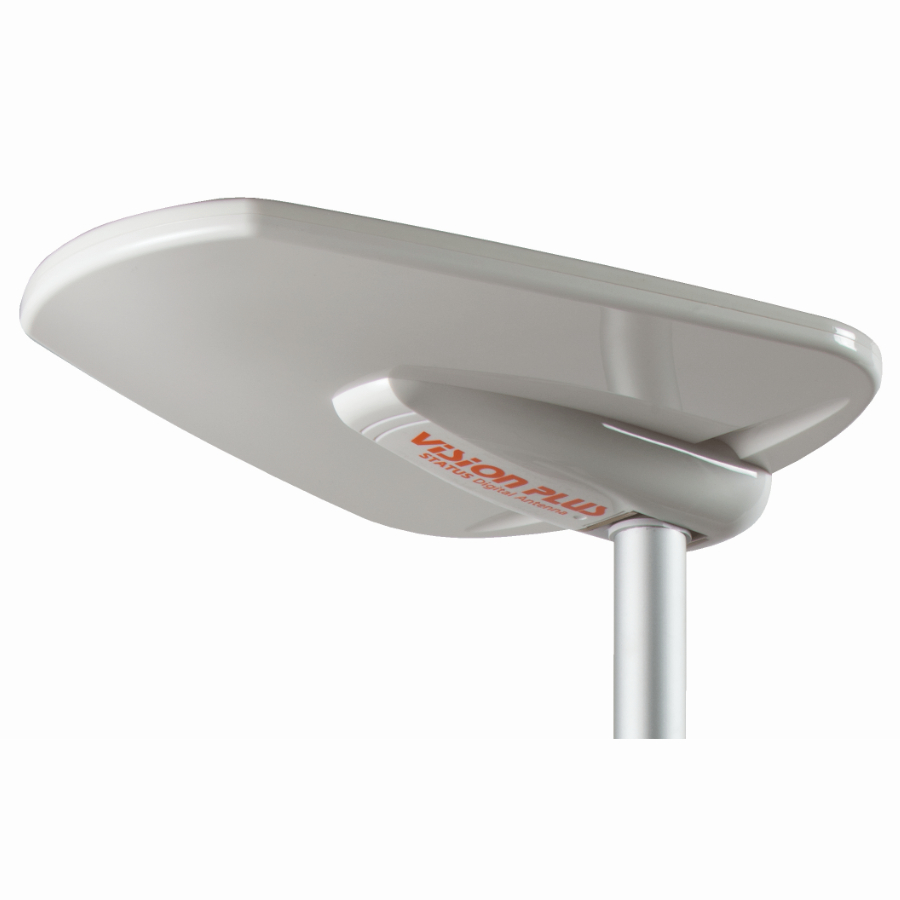

* Antenna dome Installed – Length 412mm – Width 348mm – Height 108mm
* Mounting Foot & Gaiter – Diameter 122mm – Height 35mm – Roof cavity range 25-50mm
** Please note that the roof mounting assembly kit that is supplied with this product is not suitable for sloping roofs. Contact us for advice on an alternative assembly kit.
