Description

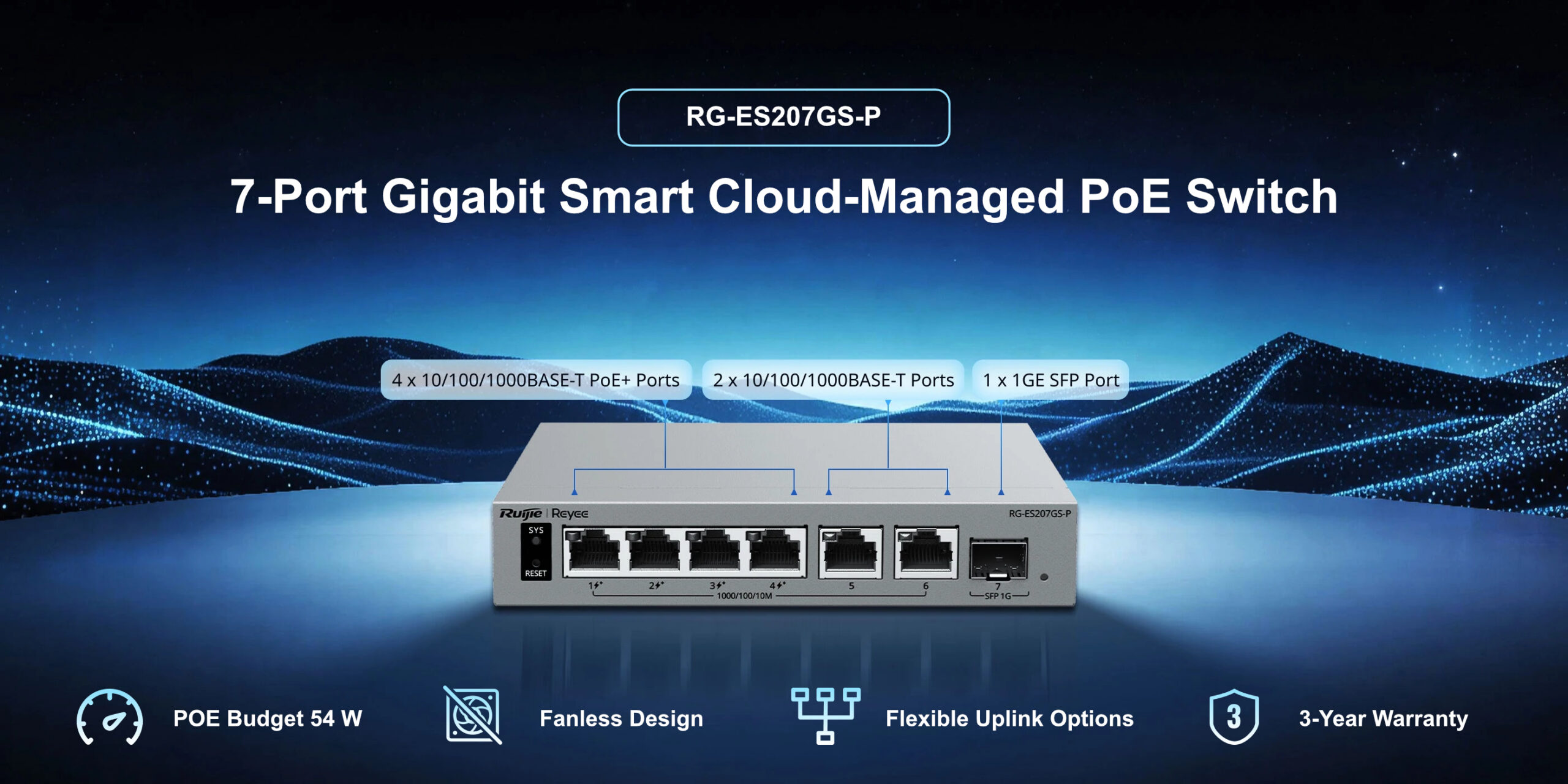

Ruijie 6-port Gigabit Smart Cloud Mananged PoE Switch with 1-Port SFP
Product: RG-ES207GS-P
Highlight Features
- 1 x 1GE SFP Port for Flexible Uplink.
- Cost-Effective Switch.
- IPC Recognition for Enhanced CCTV Network Value.
- Smart Protection for Service Continuity.
- Perpetual PoE.
- Lifetime Management on Ruijie Cloud Anytime, Anywhere.
Cost-Effective Smart Cloud Managed Switches
ES200 adopts a light-weighted Cloud management design, providing faster response to support richer features.
Perpetual PoE
PoE ports provide uninterrupted power even during switch restarts.
Key Specification
Ports: 6 x 10/100/1000Base-T, 6 x PoE+ ports, 1x 1GE SFP port
Switching capacity: 14 Gbps
Fan: Fanless
Dimensions (W x D x H): 155 mm x 78 mm x 28 mm
MTBF: > 200,000
POE: 54W, IEEE 802.3at / IEEE 802.3af
Forwarding rate: 10.42 Mpps
Maximum VLAN: 32
Port Protection: Service port: ±6 kV for common mode. Power connector: ±4 kV for common mode and ±2 kV for differential mode
Weight (With package): 0.83 kg
Warranty: 3 Years
